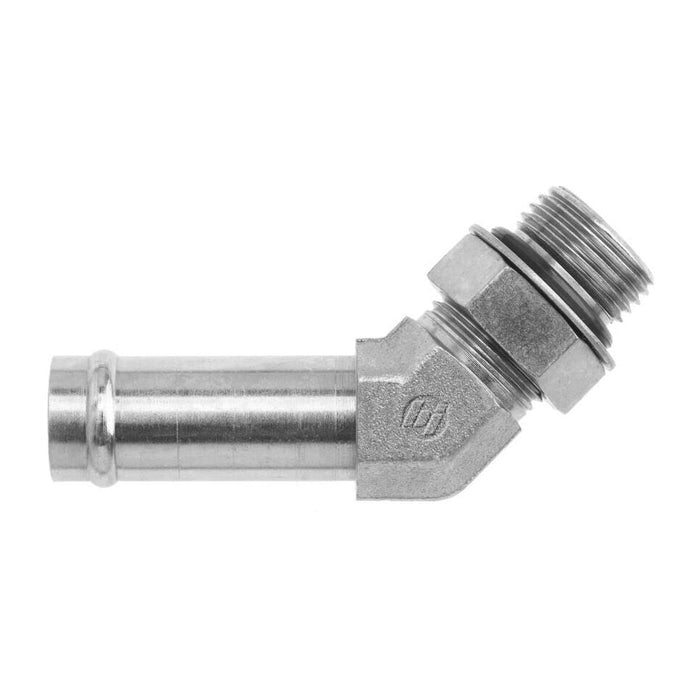

Steel, SAE J1231 Hose Bead 45° Adjustable Port Elbow, 5/8" Beaded Hose Barb x 3/4-16 Male Adjustable ORB
SKU 4603-10-08-NWO-FG
Original price
$25.00
-
Original price
$25.00
Original price
$25.00
$25.00
-
$25.00
Current price
$25.00
-
Product Attributes:
- #8 ORB Thread
- 45 Elbow
- 5/8" Hose Barb
- Hose Barb
- Hydraulic Adapters
- Male Rigid
- Steel
The 4603-10-08-NWO-FG from Brennan Industries is a steel 45° elbow — a 45° elbow fitting that changes hydraulic line direction. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 45° Elbow |
| Side 1 Connection | 5/8" Beaded Hose Barb |
| Side 1 Thread Size | 5/8" |
| Side 1 Standard | — |
| Side 2 Connection | Male ORB |
| Side 2 Thread Size | 3/4-16 |
| Side 2 Standard | SAE J1926 / ISO 11926 |
