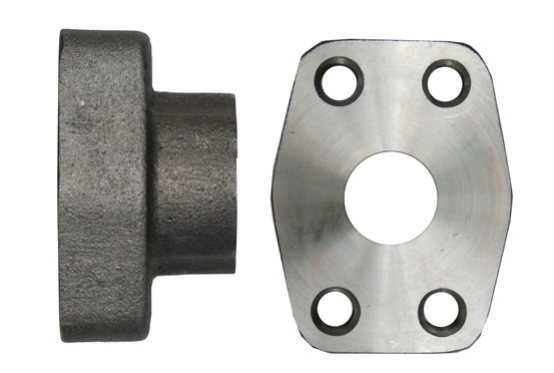

Steel, SAE Port 4-Bolt Flange Code 61 Flat Face, 1-5/8-12 Female ORB x 1-1/4" Pad Size
SKU 1930-61-20-20
Original price
$66.00
-
Original price
$66.00
Original price
$66.00
$66.00
-
$66.00
Current price
$66.00
-
Product Attributes:
- #20 ORB Thread
- 1-1/4" Code 61 Flange
- Female Rigid
- Flange
- Hydraulic Adapters
- Steel
The 1930-61-20-20 from Brennan Industries is a steel flange adapter — a flange adapter for code 61 / code 62 split-flange hydraulic connections. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | Straight |
| Side 1 Connection | Female ORB |
| Side 1 Thread Size | 1-5/8-12 |
| Side 1 Standard | SAE J1926 / ISO 11926 |
| Side 2 Connection | 1-1/4" Pad Size |
| Side 2 Thread Size | 1-1/4" |
| Side 2 Standard | — |
