    Steel, SAE J514 NPSM Swivel Male Connector, 1-1/4" Male NPTF 30° x 1-1/2" Female NPSM Swivel

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

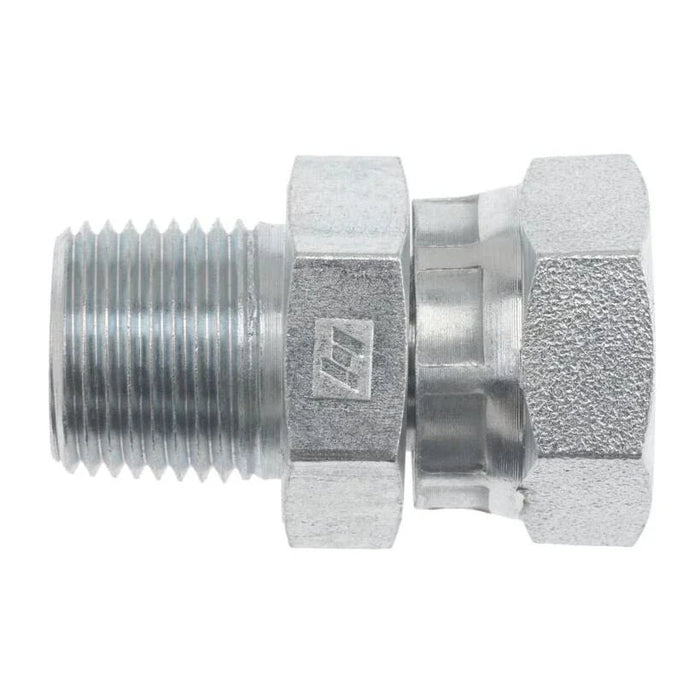

    Steel, SAE J514 NPSM Swivel Male Connector, 1-1/4" Male NPTF 30° x 1-1/2" Female NPSM Swivel

    SKU 1404-20-24
    $44.00 - $44.00
    $44.00
    $44.00 - $44.00
    $44.00
      Product Attributes:
    • 1-1/2" NPSM Thread
    • 1-1/4" NPTF Thread
    • Female Swivel
    • Hydraulic Adapters
    • Male Rigid
    • Steel
    • Straight

    The 1404-20-24 from Brennan Industries is a steel swivel male connector — a swivel male connector providing a leak-tight rotating joint between hydraulic lines. Built for use in hydraulic, fluid power, and pneumatic systems.

    Material Steel
    Plating Trivalent Chrome (CR3)
    Shape Straight
    Side 1 Connection Male NPTF
    Side 1 Thread Size 1-1/4-11.5 NPT
    Side 1 Standard SAE J476 / ANSI B1.20.3
    Side 2 Connection Female NPSM Swivel
    Side 2 Thread Size 1-1/2-11.5 NPT
    Side 2 Standard ANSI/ASME B1.20.1
