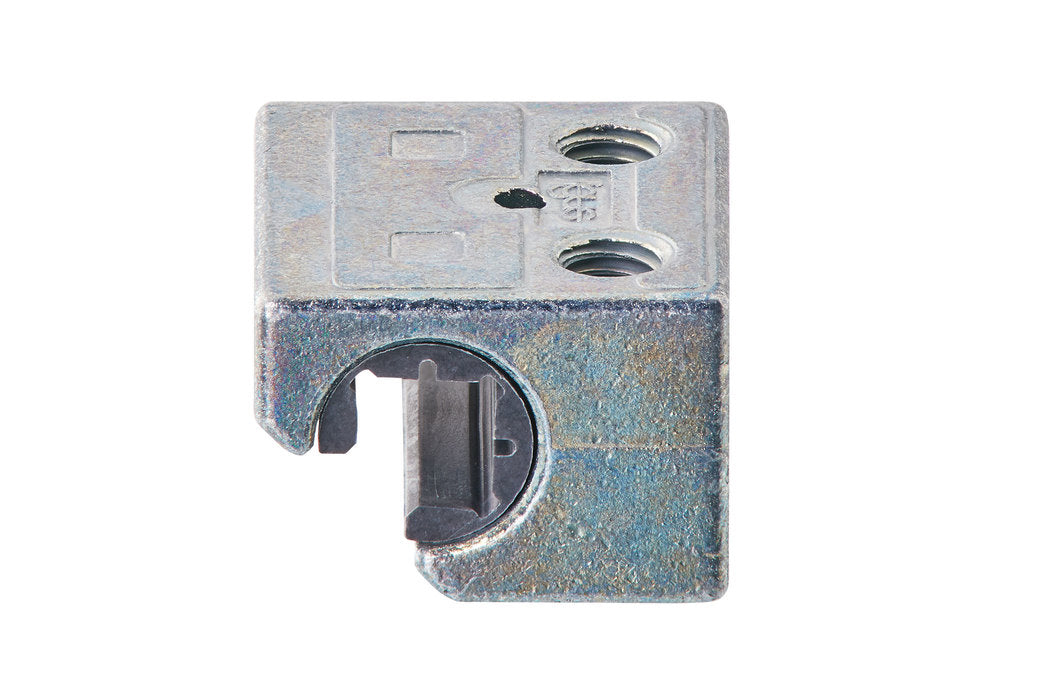

WJ200QM-01-20 Drylin® W Square Pillow Block - Die Cast Zinc
-
Product Attributes:
- Linear Carriage
- Linear Motion
- Linear Rail
The drylin W housing bearing WJ200QM-01 is a versatile linear bearing that has been developed for various applications in linear technology. It is made of die-cast zinc, which ensures high stability and durability. The sliding element is made of iglidur J200, which is known for its good sliding properties and low friction. The housing bearing is particularly suitable for applications where a low-maintenance and cost-efficient solution is required.
- Material: Die-cast zinc
- Material sliding element: iglide® J200
Dimensions
|
Floating bearing |
none |
|
A3 |
9.0 mm |
|
B |
42.50 mm |
|
C1 |
45 mm |
|
C3 |
27 mm |
|
K2 |
M8 |
|
K3 |
M6 |
General properties
|
Installation size |
20 |
|
Design |
square |
|
Material |
Die-cast zinc |
|
Material sliding element |
iglide® J200 |
|
Anti-Reflex |
No |
Mechanical properties
|
Static load capacity Coy |
719 lbs (3,200 N) |
|
Static load capacity Coz+ |
719 lbs (3,200 N) |
|
Static load capacity Coz- |
112 lbs (500 N) |
