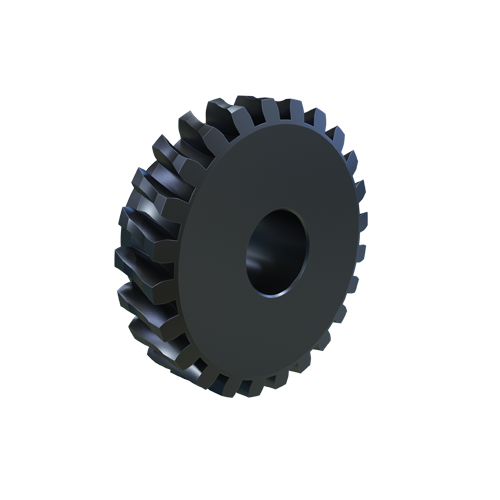

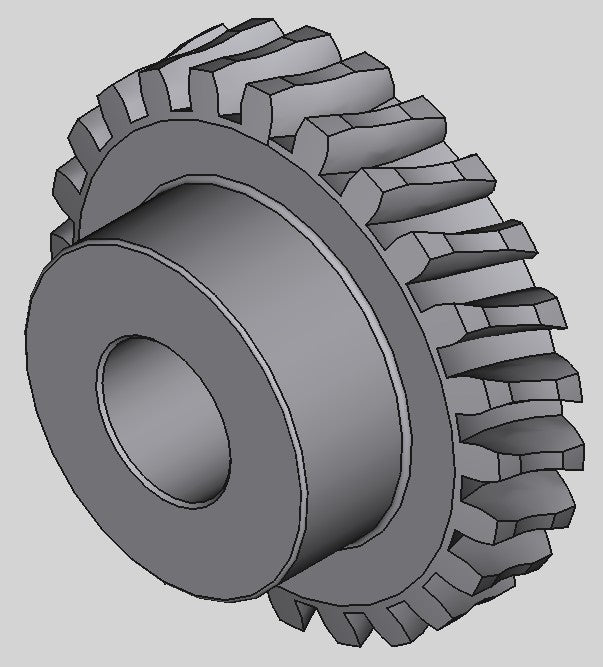

W624Q Cast Iron Worm Gear
-
Product Attributes:
- 14-1/2 Degree Pressure Angle
- 24 Teeth
- 6 DP
- Cast Iron Gears
- Open Gearing
- Quad Thread
- Right Hand
- Worm Gears
Worms and worm gears are used to power right angle, nonintersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.
Type of Gear: Worm Gear
Material: Cast Iron
Diametral Pitch: 6
Number of Threads/ Leads: 4
Ground and Polished: No
Number of Teeth: 24
Pitch Diameter: 4 in.
Outside Diameter: 4.3730 in.
Thread Direction: Right
Face Width: 1 in.
Bore Type: Finished Bore
Finished Bore Size: 1.2500 in.
Min Bore Size: 1.2500 in.
Max Bore Size: 1.6270 in.
Hub Outside Diameter: 2.7500 in.
Hub Projection: 1 in.
