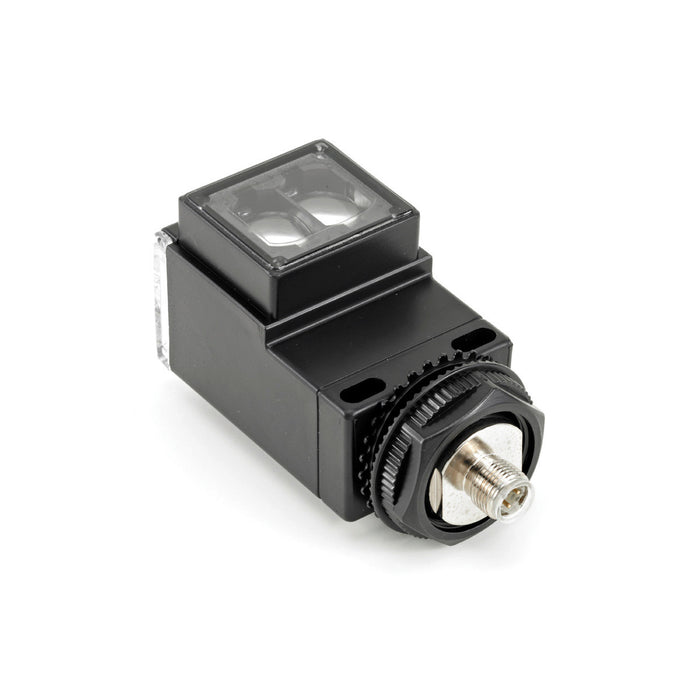

RP74-L4870D-CY6Q4UE-PF Photoeye, Polarized Retro Reflective, 10-40 V DC, NPN/PNP, LO/DO, M12 QD
SKU RP74-L4870D-CY6Q4UE-PF
Original price
$111.95
-
Original price
$111.95
Original price
$111.95
$111.95
-
$111.95
Current price
$111.95
-
Product Attributes:
- 10-40VDC
- 16ft Scanning Distance
- 4 Pin M12 Connector
- Dark On
- Light On
- NPN/PNP
- R5 Polarized Retroreflective
- Red Light
- RP74
- Sensors
- Sensors & Accessories
- Type: RP74 Photoelectric Sensor
- Body Style: Rectangular
- Housing Material: Glass Fiber Reinforced Plastic
- Operating Voltage: 10-40 V DC (Ripple <=10%)
- Sensing Mode: Polarized Retroreflective
- Sensing Range: 4.87 m
- Output Type: 1x NPN and 1x PNP Transistor Ouput
- Operation Mode: Light On/Dark On Selectable
- Max Current: 250 mA
- Current Consumption: < 30 mA
- Overload Trip Point: 270 mA
- Response Time: 15 ms
- Connection Type: 4 Pin M12 QD
- Operating Temperature: -25 C - +55 C
- IP Rating: IP67
- EMC Rating: IEC 60947-5-2, Parts 7.2.6.1.2.3 or RFI>3 V/m (in 30-1000 MHz), ETF>1KV, ESD>4KV(contact)
- Shock/Vibration Rating: IEC 60947-5-2, Part 7.4.2 (10-55 Hz, 1 mm amplitude in x, y and z directions for 30 min)/IEC-60947-5-2 Part 7.4.1 (30 g, 11 ms in x, y, and z directions for six times
- Short Circuit Protected: Yes
- Reverse Polarity Protected: Yes
- Light Source: Red LED 660 nm
- Lens Material: Acrylic
- Indicator LEDs: Power: Yellow Output: Green Margin: Red
- Timing Options: N/A
- IO-Link: No
