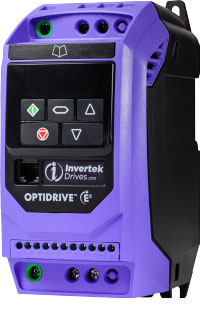

Product Image
Product photo may not represent actual item. Please see product details for more information.
ODE-3-140041-3F12 1.5 kW (2 HP) 4.1A 380-480V 3PH IP20 Variable Frequency Drive with EMC Filter
-
Product Attributes:
- 0 - Supply Voltage Output
- 2 HP
- 200-240V Output
- 380-480V Input
- 4.1A Capacity
- Frame Size 1
- IP20 Enclosure
- No Internal Brake Transistor
- Three Phase Input
- Three Phase Output
- Variable Frequency Drive
- With EMC Filter
- Without Switch
Invertek Optidrive E3 General Purpose Variable Frequency Drive
Focused on ease of use, Optidrive E3 provides unrivalled simplicity of installation, connection and commissioning, allowing the user to benefit from precise motor control and energy savings within minutes.
Documentation
ODE-3-140041-3F12 Product Datasheet
Invertek Optidrive E3 Catalog
Optidrive E3 IP20 User Manual
Features
-
Simple Commissioning
14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.
Up to 50 parameters available in total for a highly flexible performance. -
Intuitive Keypad Control
Precise digital control at the touch of a button.
-
Application Macros
Switch between Industrial, Pump and Fan modes to optimise Optidrive E3 for your application.
-
Internal Category C1 EMC Filter
An internal filter in every Optidrive E3 saves cost and time for installation.
Cat C1 according to EN61800-3:2004 -
Sensorless Vector Control for all Motor Types
- Induction Motors (IM)
- Permanent Magnet Motors (PM)
- Brushless DC Motors (BLDC)
- Synchronous Reluctance Motors (SynRM)
- Line Start PM Motor (LSPM)
-
Options and Software
A range of external EMC filters, brake resistors, input chokes and output filters are available.
