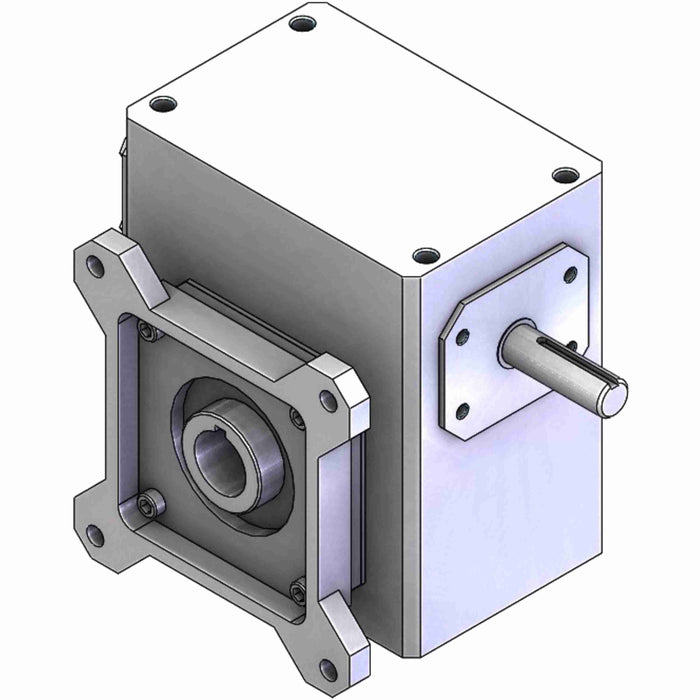

NH-FH852-5-HL-39 Cast Iron Single-Reduction Worm Reducer
SKU NHF52001501.39
Original price
$6,110.11
-
Original price
$6,110.11
Original price
$6,110.11
$6,110.11
-
$6,110.11
Current price
$6,110.11
-
Product Attributes:
- 2-7/16" Bore
- 5.25" Center Distance
- 5:1
- Grove Gear IRONMAN Narrow Housing
- Hollow Shaft
- Output Flange Left
- Right Angle
- Single Reduction
- Solid Input Shaft
- Speed Reducers
- Worm Gear Speed Reducers
Features
- Rugged cast iron housings, covers, and flanges provide superior strength and rigidity.
- Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant.
- Large oil capacity provides positive splash lubrication and superior cooling capability.
- Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.
- O-rings on all bearing covers, eliminating gaskets, sealants and leaks.
- Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.
- Tapered roller bearings on output shaft for high overhung and thrust load capacities.
- The unique quill seal guard protects the input seal from damage during motor installation.
- Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life.
- All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.
- Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.
