    EZ-QUBE Senergy Performance Drive Control

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

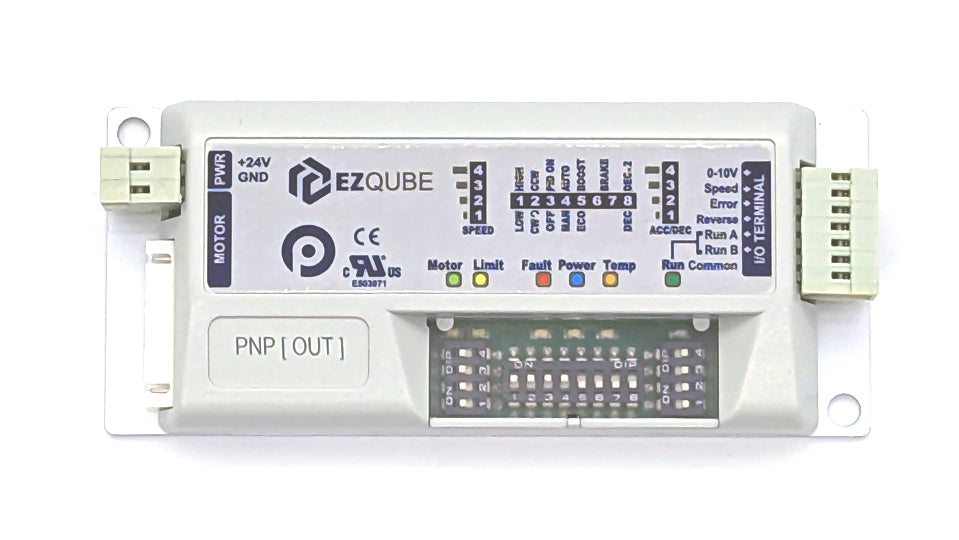

    EZ-QUBE Senergy Performance Drive Control

    SKU EZ-QUBE-P
    $113.45 - $113.45
    $113.45
    $113.45 - $113.45
    $113.45
      Product Attributes:
    • DC Speed Control
    • Motor Controls
    • Motorized Rollers
    • Rollers
    • 31 Available Fixed Speeds
    • 16 Available Accel/Decel Rate Settings
    • 3 Selectable Speeds with 2 Digital Inputs
    • 0-10V Analog Speed Control
    • 6 LEDs for Status and Diagnostics
    • BOOST-8, Freezer, Holding Brake Control with EZ-QUBE-HTBF
    • PI Based Speed Regulation
    • Options for PNP or NPN Error Output
    • Dynamic, Free, and Servo Lock Braking
    • Bluetooth Interface with EZ-QUBE-W & EZ-QUBE-W-Ai

    General Technical Data

    • Input Voltage:24.0VDC +15% / – 25%
    • Rated Motor Output Current: 2.5A (ECO), 3.5A (Boost & Boost-8)
    • Available Starting Current: 3.0A (ECO), 5.0A (Boost), 7.0A (Boost-7), 8.0A (Boost-8)
    • Power Connection: Unpluggable 2 Pole Cage Clamp Terminal
    • Motor Connection: 9 Pin JST, 4 Pin M8
    • Control Connection: Unpluggable 7 Pole Cage Clamp Terminal
    • Configuration Method: DIP Switches, Mobile App via Bluetooth
    • Speed Selections: 32, 31 plus 0-10V Analog, User selectable plus 0-10V Analog
    • Accel/Decel Selections: 16, User Selectable via App
    • Ambient Temperature:-10° ~ 40°C (15° ~ 104°F) | -25° ~ 40°C (-13° ~ 104°F) | -10° ~ 40°C (15° ~ 104°F)
    • Ambient Humidity: 10 ~ 90% RH (No Condensation)
    • Certifications: CE, RoHS, UL Recognized to UL 61800-5-1
