    EQUBE Senergy Simple Drive Control

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

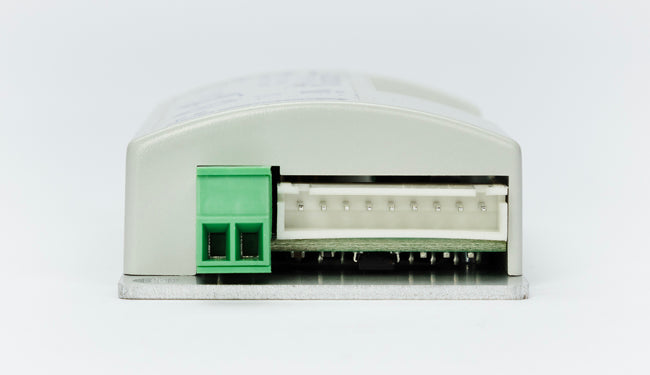

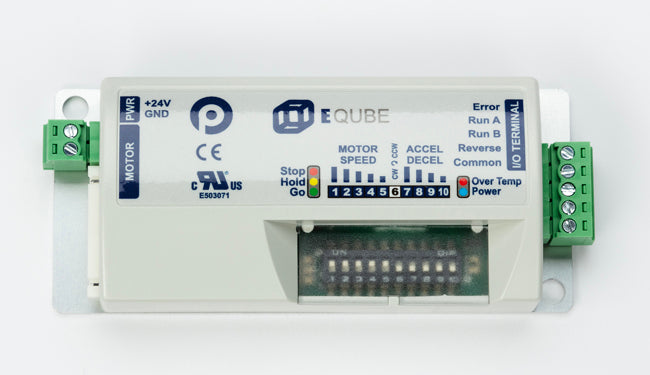

    EQUBE Senergy Simple Drive Control

    SKU E-QUBE-P
    $90.65 - $90.65
    $90.65
    $90.65 - $90.65
    $90.65
      Product Attributes:
    • DC Speed Control
    • Motor Controls
    • Motorized Rollers
    • Rollers
    • DIP Switch Setting for 32 available speeds
    • DIP Switch Setting for 16 available Accel /Decel rates
    • 2 Digital Run signals to provide 3 speed options plus Input for Reverse
    • PI regulated Speed Control
    • Options for PNP or NPN control inputs
    • ECO Performance Mode
    • LED Indicators for Power, Run, Reverse, and Error

    General Technical Data

    • Input Voltage: 24.0VDC +15% / – 25%
    • Rated Motor Output Current: 2.8A
    • Available Starting Current: 3.0A
    • Power Connection: Unpluggable 2 Pole ScrewTerminal
    • Motor Connection: 9 Pin JST, 4 Pin M8
    • Control Connection: Unpluggable 5 Pole Screw Terminal
    • Configuration Method: DIP Switches
    • Speed Selections: 32
    • Accel/Decel Selections: 16
    • Indicators: 5 Colored LEDs
    • Ambient Temperature: -10° ~ 40°C (15° ~ 104°F)
    • Certifications: CE, RoHS, UL Recognized to UL 61800-5-1
