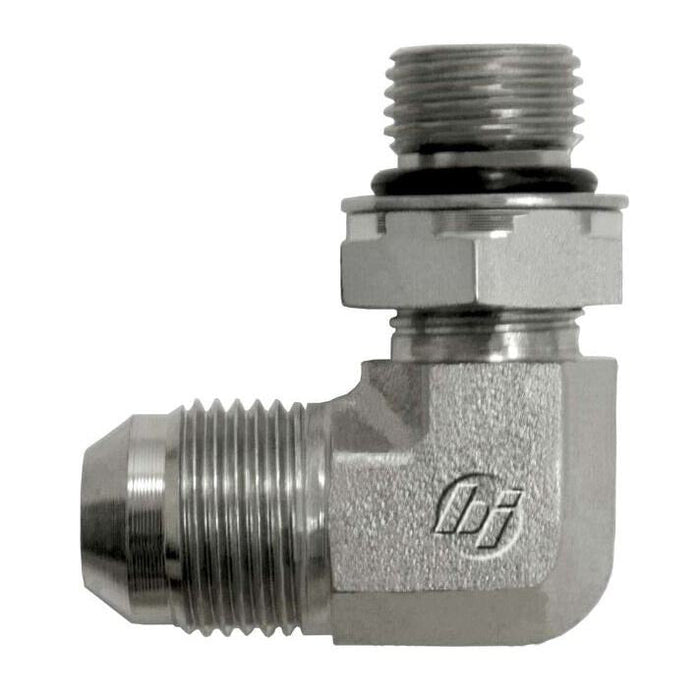

Steel, SAE J514 37° Flare Male Metric Adjustable (ISO 6149) Port 90° Elbow, 3/4" Male JIC x M22X1.5 Male Metric Adjustable ORB
SKU 7650-12-22-NWO-FG-VITON
Original price
$22.61
-
Original price
$22.61
Original price
$22.61
$22.61
-
$22.61
Current price
$22.61
-
Product Attributes:
- #12 JIC Thread
- 90 Elbow
- Hydraulic Adapters
- M22 ORB Thread
- Male Rigid
- Steel
The 7650-12-22-NWO-FG-VITON from Brennan Industries is a steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 90° Elbow |
| Side 1 Connection | Male JIC 37° Flare |
| Side 1 Thread Size | 1-1/16-12 UN |
| Side 1 Standard | SAE J514 (Class 2A Thread) |
| Side 2 Connection | Male ORB |
| Side 2 Thread Size | M22x1.5 |
| Side 2 Standard | SAE J1926 / ISO 11926 |
