60 HCB 1.8750" BORE 1/2"x1/4" kw (1) SS
SKU 730601060
Original price
$868.04
-
Original price
$868.04
Original price
$868.04
$868.04
-
$868.04
Current price
$868.04
-
Product Attributes:
- 1 7/8" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 60
- Steel

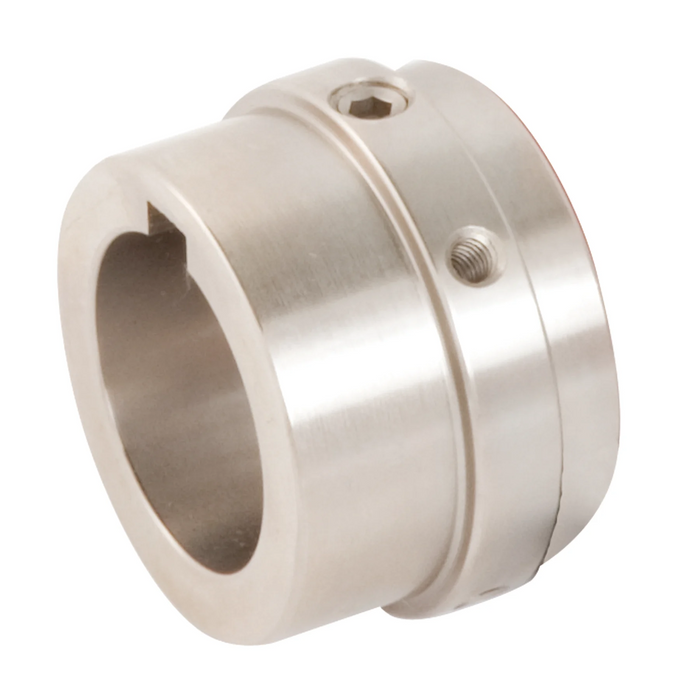

The Rexnord Omega 60 HCB 1.8750" BORE 1/2"x1/4" kw (1) SS is a finished bore close-coupled hub (HCB) designed for compact drive arrangements. Pre-bored and keyseated to the specified dimensions, this hub is ready to install and offers the same reversible, interchangeable design as all Omega hubs. Ideal where limited DBSE is required.
| Specification | Value |
|---|---|
| Coupling Size | 60 |
| Hub Type | HCB – Close-Coupled Bore Hub |
| Bore Dimension | 1.8750" BORE |
| Keyway | 1/2"x1/4" kw |
| Bore System | Inch |
| Part Number (SKU) | 730601060 |
| Material | Carbon Steel |
| Continuous Torque Rating | 12,500 lb-in |
| Maximum RPM | 3800 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled) |
| Country of Origin | United States |
