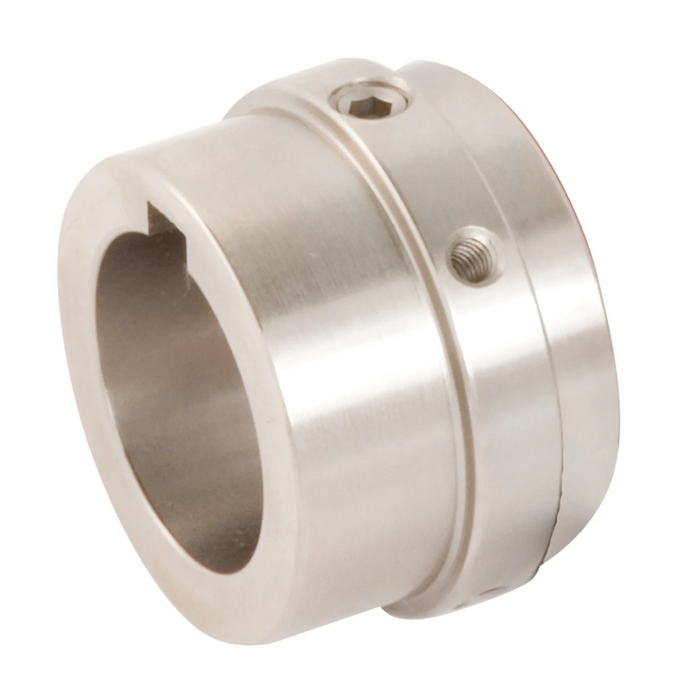

Product Image
Product photo may not represent actual item. Please see product details for more information.
50 HCB 2.500" BORE 5/8"x5/16" KW 1 SS
SKU 730501080
Original price
$695.50
-
Original price
$695.50
Original price
$695.50
$695.50
-
$695.50
Current price
$695.50
-
Product Attributes:
- 2 1/2" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 50
- Steel
The Rexnord Omega 50 HCB 2.500" BORE 5/8"x5/16" KW 1 SS is a finished bore close-coupled hub (HCB) designed for compact drive arrangements. Pre-bored and keyseated to the specified dimensions, this hub is ready to install and offers the same reversible, interchangeable design as all Omega hubs. Ideal where limited DBSE is required.
| Specification | Value |
|---|---|
| Coupling Size | 50 |
| Hub Type | HCB – Close-Coupled Bore Hub |
| Bore Dimension | 2.500" BORE |
| Keyway | 5/8"x5/16" KW |
| Bore System | Inch |
| Part Number (SKU) | 730501080 |
| Material | Carbon Steel |
| Continuous Torque Rating | 7,650 lb-in |
| Maximum RPM | 4200 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled) |
| Country of Origin | United States |
