40 HCB 1.2500" BORE 1/4" X 1/8" Kw (1)SS
SKU 730401040
Original price
$523.63
-
Original price
$523.63
Original price
$523.63
$523.63
-
$523.63
Current price
$523.63
-
Product Attributes:
- 1 1/4" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 40
- Steel

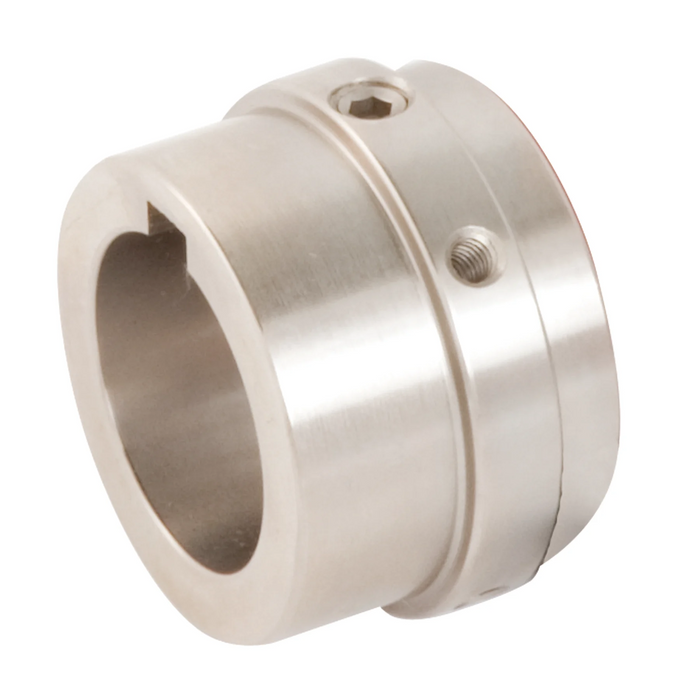

The Rexnord Omega 40 HCB 1.2500" BORE 1/4" X 1/8" Kw (1)SS is a finished bore close-coupled hub (HCB) designed for compact drive arrangements. Pre-bored and keyseated to the specified dimensions, this hub is ready to install and offers the same reversible, interchangeable design as all Omega hubs. Ideal where limited DBSE is required.
| Specification | Value |
|---|---|
| Coupling Size | 40 |
| Hub Type | HCB – Close-Coupled Bore Hub |
| Bore Dimension | 1.2500" BORE |
| Keyway | 1/4" X 1/8" Kw |
| Bore System | Inch |
| Part Number (SKU) | 730401040 |
| Material | Carbon Steel |
| Continuous Torque Rating | 5,500 lb-in |
| Maximum RPM | 5000 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled) |
| Country of Origin | United States |
