20 HCB 0.875" BORE 3/16"X 3/32" KW & 1SS
SKU 730202028PS
Original price
$286.23
-
Original price
$286.23
Original price
$286.23
$286.23
-
$286.23
Current price
$286.23
-
Product Attributes:
- 7/8" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 20
- Steel

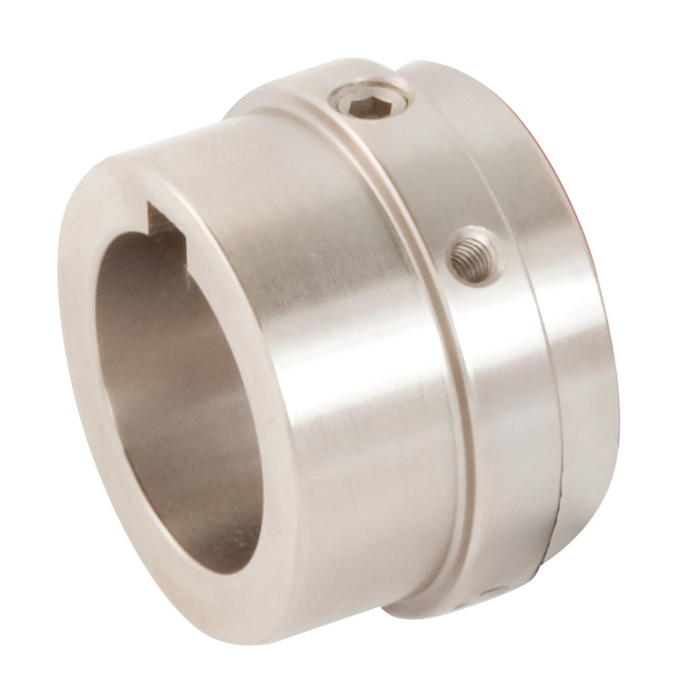

The Rexnord Omega 20 HCB 0.875" BORE 3/16"X 3/32" KW & 1SS is a finished bore close-coupled hub (HCB) designed for compact drive arrangements. Pre-bored and keyseated to the specified dimensions, this hub is ready to install and offers the same reversible, interchangeable design as all Omega hubs. Ideal where limited DBSE is required.
| Specification | Value |
|---|---|
| Coupling Size | 20 |
| Hub Type | HCB – Close-Coupled Bore Hub |
| Bore Dimension | 0.875" BORE |
| Keyway | 3/16"X 3/32" KW |
| Bore System | Inch |
| Part Number (SKU) | 730202028PS |
| Material | Carbon Steel |
| Continuous Torque Rating | 2,300 lb-in |
| Maximum RPM | 6600 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled) |
| Country of Origin | United States |
