Product Image
Product photo may not represent actual item. Please see product details for more information.
20 HCB 1.25" BORE 5/16" X 5/32" NSKW 1SS
SKU 7.30201E+11
Original price
$286.23
-
Original price
$286.23
Original price
$286.23
$286.23
-
$286.23
Current price
$286.23
-
Product Attributes:
- 1 1/4" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 20
- Steel

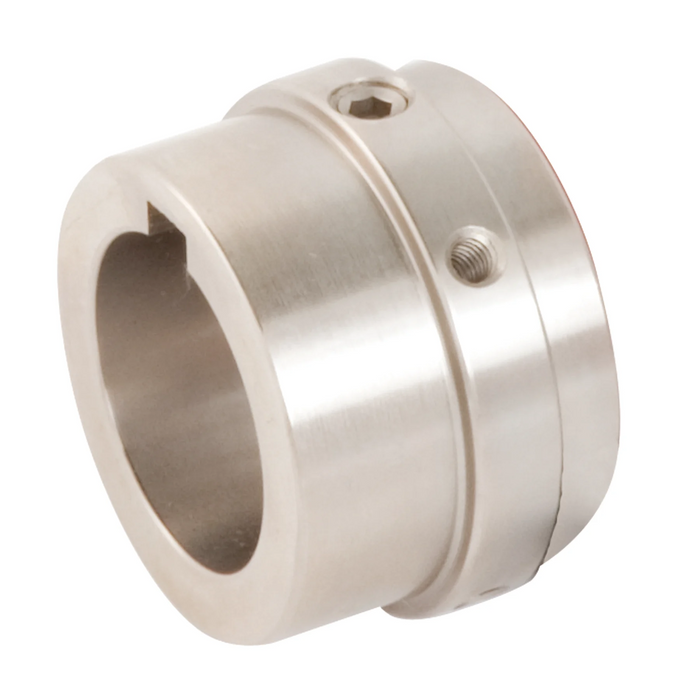

The Rexnord Omega 20 HCB 1.25" BORE 5/16" X 5/32" NSKW 1SS is a finished bore close-coupled hub (HCB) designed for compact drive arrangements. Pre-bored and keyseated to the specified dimensions, this hub is ready to install and offers the same reversible, interchangeable design as all Omega hubs. Ideal where limited DBSE is required.
| Specification | Value |
|---|---|
| Coupling Size | 20 |
| Hub Type | HCB – Close-Coupled Bore Hub |
| Bore Dimension | 1.25" BORE |
| Keyway | N/A |
| Bore System | Inch |
| Part Number (SKU) | 7.30201E+11 |
| Material | Carbon Steel |
| Continuous Torque Rating | 2,300 lb-in |
| Maximum RPM | 6600 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled) |
| Country of Origin | United States |
