50 HTL 2517 INCH BSHG
SKU 7300830
Original price
$339.05
-
Original price
$339.05
Original price
$339.05
$339.05
-
$339.05
Current price
$339.05
-
Product Attributes:
- Accepts 2517 Bushing
- Coupling Half
- Couplings
- Elastomeric Couplings
- Size 50
- Steel
- Taper Bushed Bore

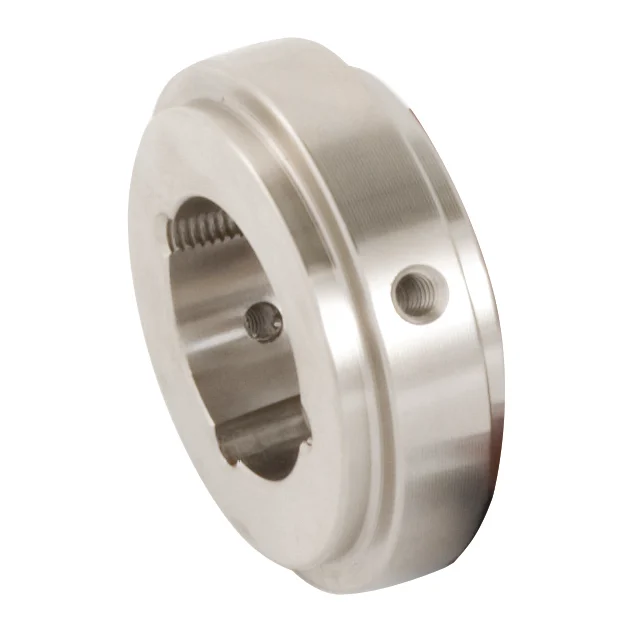

The Rexnord Omega 50 HTL 2517 INCH BSHG is a Taper-Lock bushed hub (HTL) for Omega elastomeric couplings. The Taper-Lock bushing system enables easy, accurate installation and removal without special tooling. This hub type eliminates the need to machine a bore—simply order the appropriate bushing for your shaft diameter. Bushings are sold separately.
| Specification | Value |
|---|---|
| Coupling Size | 50 |
| Hub Type | HTL – Taper-Lock Bushed Hub |
| Bushing Number | 2517 |
| Bushing Included | No – Order Separately |
| Bore System | Inch |
| Part Number (SKU) | 7300830 |
| Material | Carbon Steel |
| Continuous Torque Rating | 7,650 lb-in |
| Maximum RPM | 4200 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Country of Origin | United States |
