Product Image
Product photo may not represent actual item. Please see product details for more information.
30 HTL 303SS HUB
SKU 7300820SS
Original price
$1,308.74
-
Original price
$1,308.74
Original price
$1,308.74
$1,308.74
-
$1,308.74
Current price
$1,308.74
-
Product Attributes:
- Accepts 2012 Bushing
- Coupling Half
- Couplings
- Elastomeric Couplings
- Size 30
- Stainless Steel
- Taper Bushed Bore

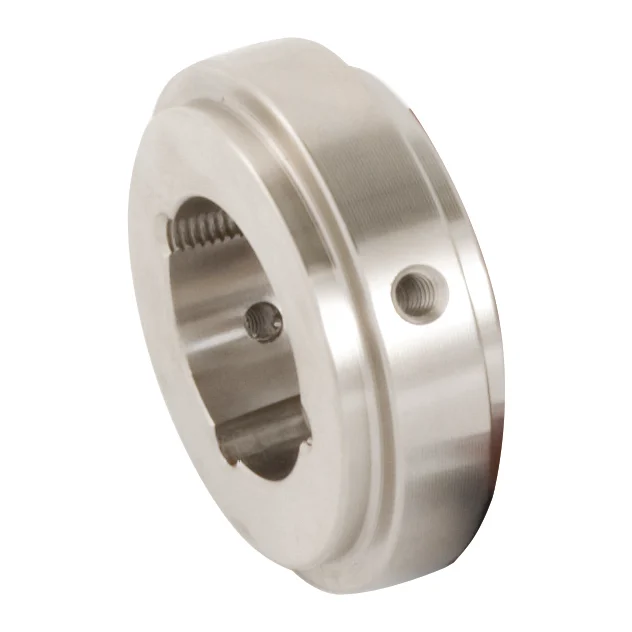

The Rexnord Omega 30 HTL 303SS HUB is a Taper-Lock bushed hub (HTL) for Omega elastomeric couplings. The Taper-Lock bushing system enables easy, accurate installation and removal without special tooling. This hub type eliminates the need to machine a bore—simply order the appropriate bushing for your shaft diameter. Bushings are sold separately.
| Specification | Value |
|---|---|
| Coupling Size | 30 |
| Hub Type | HTL – Taper-Lock Bushed Hub |
| Bushing Number | See title |
| Bushing Included | No – Order Separately |
| Bore System | Inch |
| Part Number (SKU) | 7300820SS |
| Material | 303 Stainless Steel |
| Continuous Torque Rating | 3,650 lb-in |
| Maximum RPM | 5800 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Country of Origin | United States |
