15 HTL HUB
SKU 7300812
Original price
$119.70
-
Original price
$119.70
Original price
$119.70
$119.70
-
$119.70
Current price
$119.70
-
Product Attributes:
- Accepts 1310 Bushing
- Coupling Half
- Couplings
- Elastomeric Couplings
- Size 15
- Steel
- Taper Bushed Bore

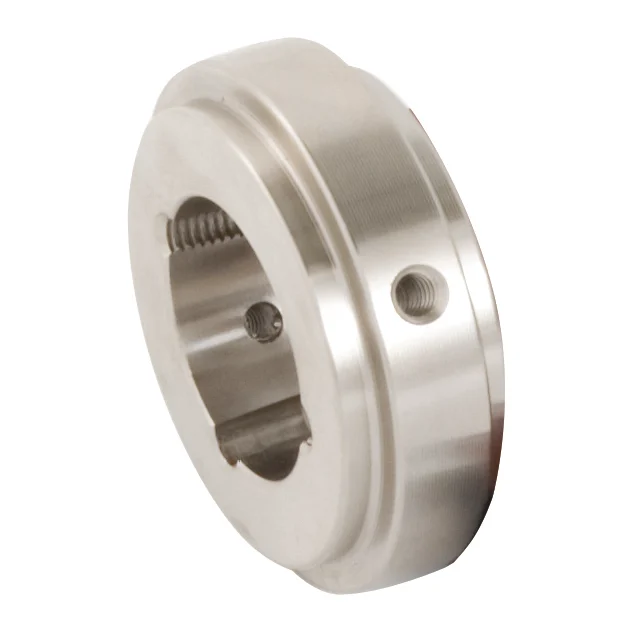

The Rexnord Omega 15 HTL HUB is a Taper-Lock bushed hub (HTL) for Omega elastomeric couplings. The Taper-Lock bushing system enables easy, accurate installation and removal without special tooling. This hub type eliminates the need to machine a bore—simply order the appropriate bushing for your shaft diameter. Bushings are sold separately.
| Specification | Value |
|---|---|
| Coupling Size | 15 |
| Hub Type | HTL – Taper-Lock Bushed Hub |
| Bushing Number | See title |
| Bushing Included | No – Order Separately |
| Bore System | Inch |
| Part Number (SKU) | 7300812 |
| Material | Carbon Steel |
| Continuous Torque Rating | 1,800 lb-in |
| Maximum RPM | 6600 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Country of Origin | United States |
