Product Image
Product photo may not represent actual item. Please see product details for more information.
10 HTL 1310 INCH BSHG
SKU 7300810
Original price
$98.30
-
Original price
$98.30
Original price
$98.30
$98.30
-
$98.30
Current price
$98.30
-
Product Attributes:
- Accepts 1310 Bushing
- Coupling Half
- Couplings
- Elastomeric Couplings
- Size 10
- Steel
- Taper Bushed Bore

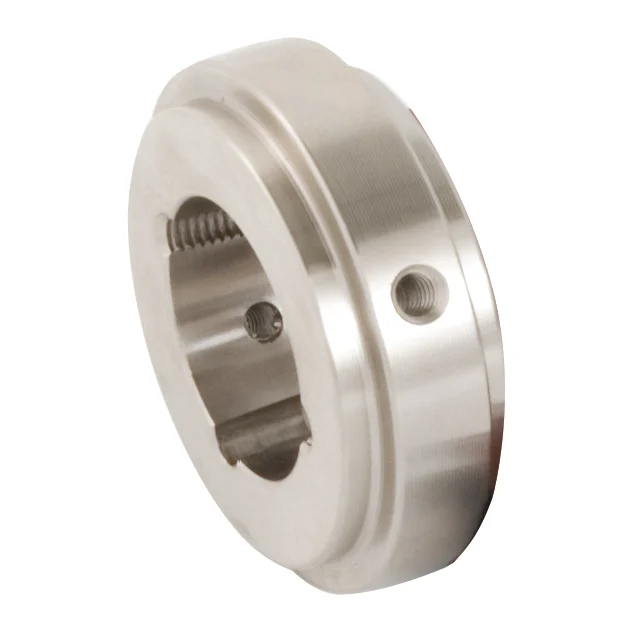

The Rexnord Omega 10 HTL 1310 INCH BSHG is a Taper-Lock bushed hub (HTL) for Omega elastomeric couplings. The Taper-Lock bushing system enables easy, accurate installation and removal without special tooling. This hub type eliminates the need to machine a bore—simply order the appropriate bushing for your shaft diameter. Bushings are sold separately.
| Specification | Value |
|---|---|
| Coupling Size | 10 |
| Hub Type | HTL – Taper-Lock Bushed Hub |
| Bushing Number | 1310 |
| Bushing Included | No – Order Separately |
| Bore System | Inch |
| Part Number (SKU) | 7300810 |
| Material | Carbon Steel |
| Continuous Torque Rating | 1,450 lb-in |
| Maximum RPM | 6600 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Country of Origin | United States |
