60 HSB 2.875" BORE 3/4" X 3/8" KW 1 SS
SKU 7300692
Original price
$626.61
-
Original price
$626.61
Original price
$626.61
$626.61
-
$626.61
Current price
$626.61
-
Product Attributes:
- 2 7/8" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 60
- Steel

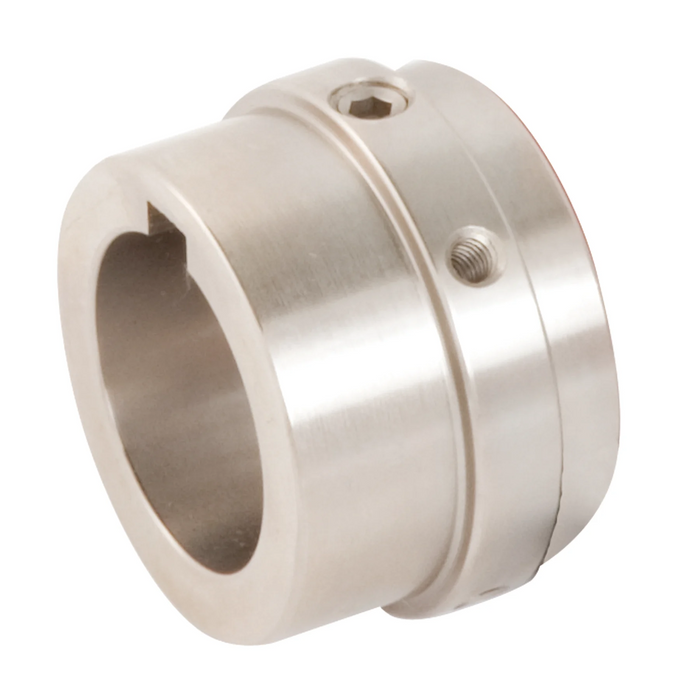

The Rexnord Omega 60 HSB 2.875" BORE 3/4" X 3/8" KW 1 SS is a finished bore hub (HSB) pre-bored and keyseated to the specified bore and keyway dimensions. Ready for immediate installation, this hub eliminates machining time and ensures precise shaft fit. Reversible hub design allows inboard and outboard configurations for flexible shaft gap accommodation.
| Specification | Value |
|---|---|
| Coupling Size | 60 |
| Hub Type | HSB – Straight Bore, Pre-Bored & Keyseated |
| Bore Dimension | 2.875" BORE |
| Keyway | 3/4" X 3/8" KW |
| Bore System | Inch |
| Part Number (SKU) | 7300692 |
| Material | Carbon Steel Hub, Stainless Steel set screws included |
| Continuous Torque Rating | 12,500 lb-in |
| Maximum RPM | 3800 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled), ES (Spacer) |
| Country of Origin | United States |
