20M HRB METRIC HUB
SKU 7300650M1
Original price
$155.81
-
Original price
$155.81
Original price
$155.81
$155.81
-
$155.81
Current price
$155.81
-
Product Attributes:
- Coupling Half
- Couplings
- Elastomeric Couplings
- Size 20
- Steel
- Stock Bore

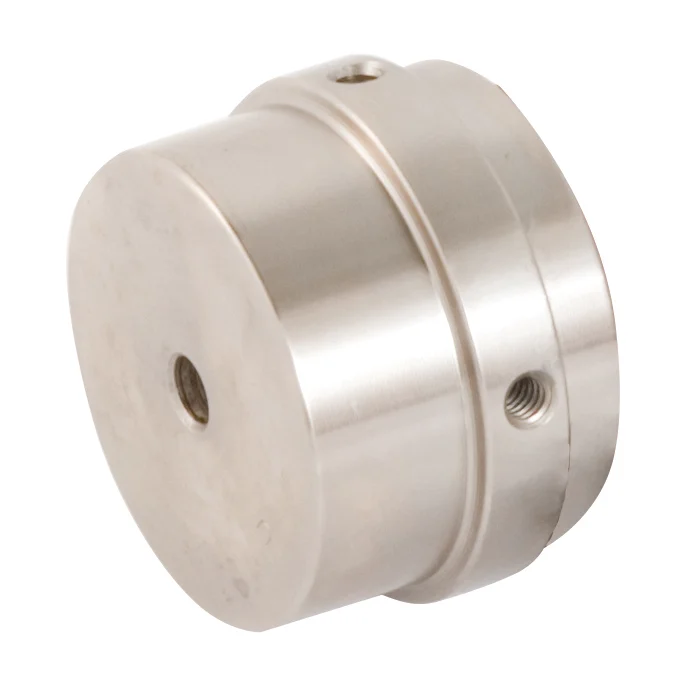

The Rexnord Omega 20M HRB METRIC HUB is a straight bore hub (HRB) designed for use with Omega close-coupled and spacer coupling elements. The reversible hub design accepts both inboard and outboard configurations, reducing inventory requirements. Hubs feature identical bolting patterns across close-coupled and spacer elements for maximum interchangeability.
| Specification | Value |
|---|---|
| Coupling Size | 20 |
| Hub Type | HRB – Straight Bore (Rough Bore) |
| Bore System | Metric |
| Part Number (SKU) | 7300650M1 |
| Material | Carbon Steel |
| Maximum Bore | 2.38" |
| Continuous Torque Rating | 2,300 lb-in |
| Maximum RPM | 6600 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled), ES (Spacer) |
| Country of Origin | United States |
