Product Image
Product photo may not represent actual item. Please see product details for more information.
3 HCB 1.1875" BORE 1/4"x1/8" KW (1) SS
SKU 730031038
Original price
$128.40
-
Original price
$128.40
Original price
$128.40
$128.40
-
$128.40
Current price
$128.40
-
Product Attributes:
- 1 3/16" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 3
- Steel

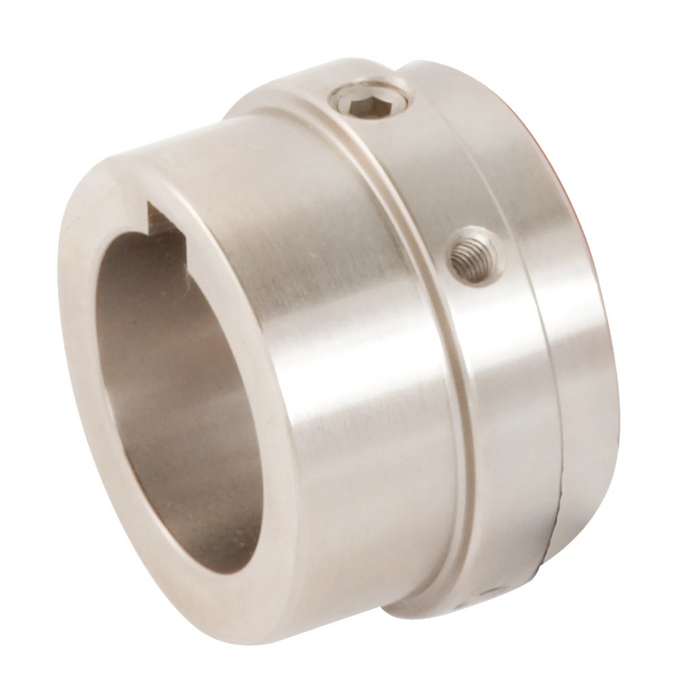

The Rexnord Omega 3 HCB 1.1875" BORE 1/4"x1/8" KW (1) SS is a finished bore close-coupled hub (HCB) designed for compact drive arrangements. Pre-bored and keyseated to the specified dimensions, this hub is ready to install and offers the same reversible, interchangeable design as all Omega hubs. Ideal where limited DBSE is required.
| Specification | Value |
|---|---|
| Coupling Size | 3 |
| Hub Type | HCB – Close-Coupled Bore Hub |
| Bore Dimension | 1.1875" BORE |
| Keyway | 1/4"x1/8" KW |
| Bore System | Inch |
| Part Number (SKU) | 730031038 |
| Material | Carbon Steel |
| Continuous Torque Rating | 365 lb-in |
| Maximum RPM | 6600 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled) |
| Country of Origin | United States |
