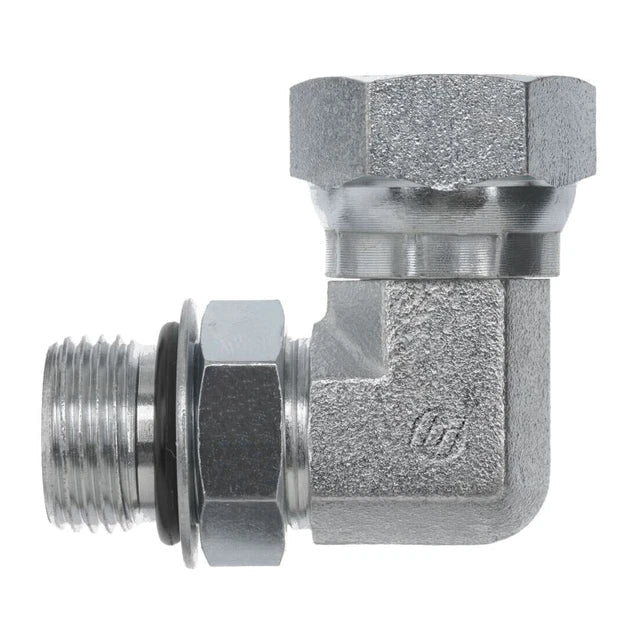

Stainless Steel, SAE J514 NPSM Swivel 90° Adjustable Port Elbow, 3/4-16 Male Adjustable ORB x 1/2" Female NPSM Swivel
SKU 6901-08-08-NWO-SS
Original price
$173.87
-
Original price
$173.87
Original price
$173.87
$173.87
-
$173.87
Current price
$173.87
-
Product Attributes:
- #8 ORB Thread
- 1/2" NPSM Thread
- 90 Elbow
- Female Swivel
- Hydraulic Adapters
- Male Rigid
- Stainless Steel
The 6901-08-08-NWO-SS from Brennan Industries is a stainless steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Stainless Steel |
| Plating | None (Passivated) |
| Shape | 90° Elbow |
| Side 1 Connection | Male ORB |
| Side 1 Thread Size | 3/4-16 |
| Side 1 Standard | SAE J1926 / ISO 11926 |
| Side 2 Connection | Female NPSM Swivel |
| Side 2 Thread Size | 1/2-14 NPT |
| Side 2 Standard | ANSI/ASME B1.20.1 |
