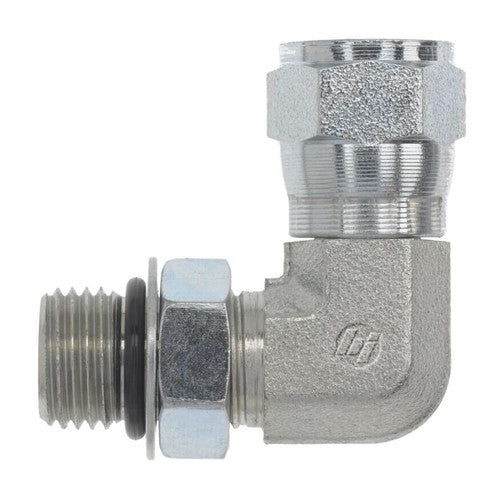

Stainless Steel, SAE J514 37° Flare Swivel 90° Adjustable Port Elbow, 7/16-20 Male Adjustable ORB x 1/4" Female JIC Swivel
SKU 6809-04-04-NWO-SS
Original price
$137.90
-
Original price
$137.90
Original price
$137.90
$137.90
-
$137.90
Current price
$137.90
-
Product Attributes:
- #4 JIC Thread
- #4 ORB Thread
- 90 Elbow
- Female Swivel
- Hydraulic Adapters
- Male Rigid
- Stainless Steel
The 6809-04-04-NWO-SS from Brennan Industries is a stainless steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Stainless Steel |
| Plating | None (Passivated) |
| Shape | 90° Elbow |
| Side 1 Connection | Male ORB |
| Side 1 Thread Size | 7/16-20 |
| Side 1 Standard | SAE J1926 / ISO 11926 |
| Side 2 Connection | Female JIC 37° Flare Swivel |
| Side 2 Thread Size | 7/16-20 UNF |
| Side 2 Standard | SAE J514 (Class 2A Thread) |
