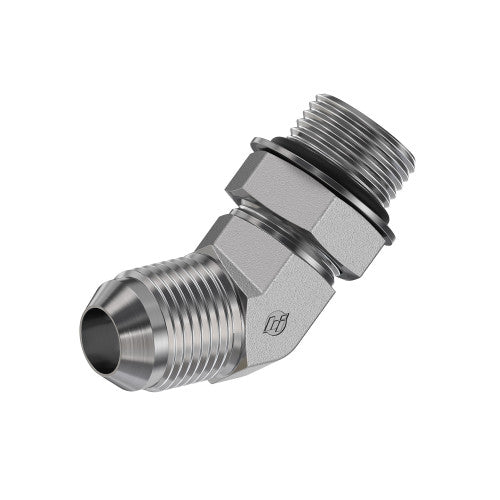

Steel, SAE J514 37° Flare 45° Adjustable Port Elbow, 1" Male JIC x 1-5/16-12 Male Adjustable ORB
SKU 6802-16-16-NWO-FG-VITON
Original price
$19.44
-
Original price
$19.44
Original price
$19.44
$19.44
-
$19.44
Current price
$19.44
-
Product Attributes:
- #16 JIC Thread
- #16 ORB Thread
- 45 Elbow
- Hydraulic Adapters
- Male Rigid
- Steel
The 6802-16-16-NWO-FG-VITON from Brennan Industries is a steel 45° elbow — a 45° elbow fitting that changes hydraulic line direction. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 45° Elbow |
| Side 1 Connection | Male JIC 37° Flare |
| Side 1 Thread Size | 1-5/16-12 UN |
| Side 1 Standard | SAE J514 (Class 2A Thread) |
| Side 2 Connection | Male ORB |
| Side 2 Thread Size | 1-5/16-12 |
| Side 2 Standard | SAE J1926 / ISO 11926 |
