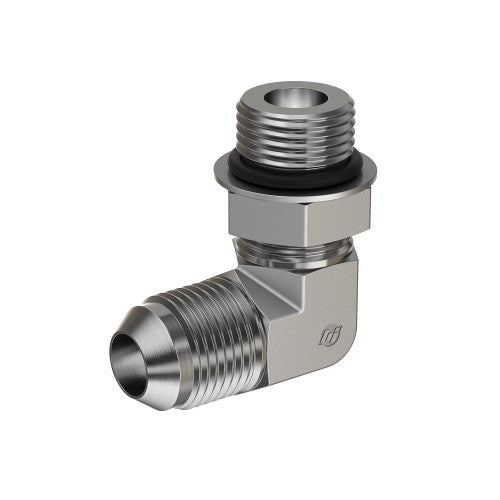

Steel, SAE J514 37° Flare 90° Adjustable Port Elbow, 1/2" Male JIC x 1-1/16-12 Male Adjustable ORB
SKU 6801-08-12-NWO-FG-VITON
Original price
$11.26
-
Original price
$11.26
Original price
$11.26
$11.26
-
$11.26
Current price
$11.26
-
Product Attributes:
- #12 ORB Thread
- #8 JIC Thread
- 90 Elbow
- Hydraulic Adapters
- Male Rigid
- Steel
The 6801-08-12-NWO-FG-VITON from Brennan Industries is a steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 90° Elbow |
| Side 1 Connection | Male JIC 37° Flare |
| Side 1 Thread Size | 3/4-16 UNF |
| Side 1 Standard | SAE J514 (Class 2A Thread) |
| Side 2 Connection | Male ORB |
| Side 2 Thread Size | 1-1/16-12 |
| Side 2 Standard | SAE J1926 / ISO 11926 |
