    Stainless Steel, SAE J514 37° Flare Swivel Female Connector, 1" Female NPTF x 1" Female JIC Swivel

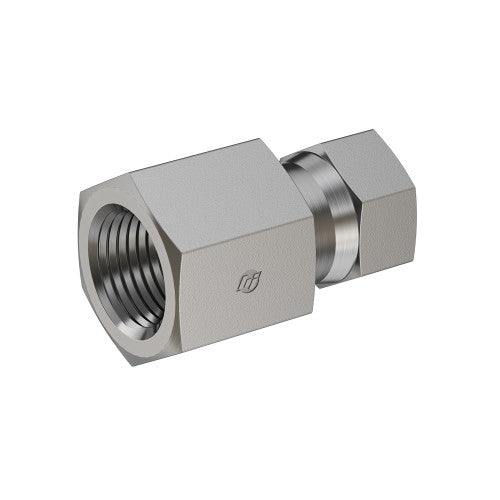

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

    Stainless Steel, SAE J514 37° Flare Swivel Female Connector, 1" Female NPTF x 1" Female JIC Swivel

    SKU 6506-16-16-SS
    $212.89 - $212.89
    $212.89
    $212.89 - $212.89
    $212.89
      Product Attributes:
    • #16 JIC Thread
    • 1" NPTF Thread
    • Female Rigid
    • Female Swivel
    • Hydraulic Adapters
    • Stainless Steel
    • Straight

    The 6506-16-16-SS from Brennan Industries is a stainless steel swivel female connector — a swivel female connector providing a leak-tight rotating joint between hydraulic lines. Built for use in hydraulic, fluid power, and pneumatic systems.

    Material Stainless Steel
    Plating None (Passivated)
    Shape Straight
    Side 1 Connection Female NPTF
    Side 1 Thread Size 1-11.5 NPT
    Side 1 Standard SAE J476 / ANSI B1.20.3
    Side 2 Connection Female JIC 37° Flare Swivel
    Side 2 Thread Size 1-5/16-12 UN
    Side 2 Standard SAE J514 (Class 2A Thread)
