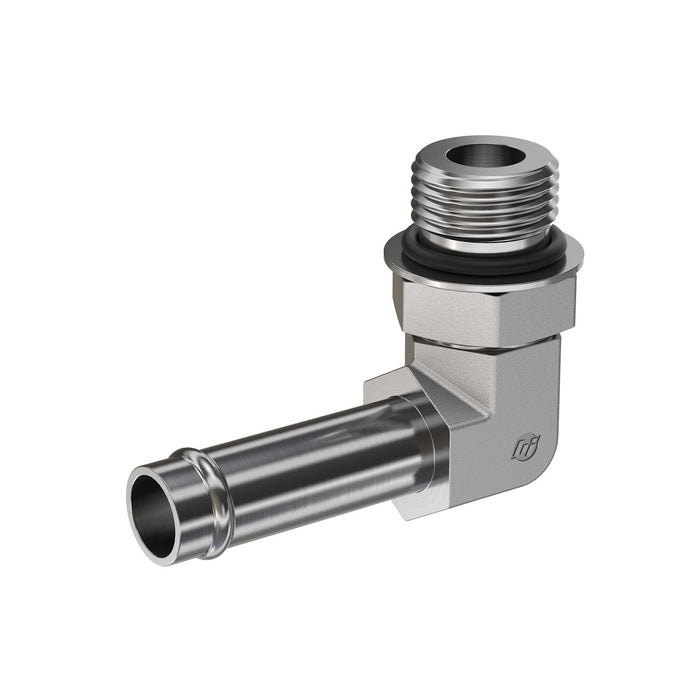

Steel, SAE J1231 Hose Bead 90° Adjustable Port Elbow, 5/16" Beaded Hose Barb x 1/2-20 Male Adjustable ORB
SKU 4601-05-05-NWO-FG
Original price
$10.52
-
Original price
$10.52
Original price
$10.52
$10.52
-
$10.52
Current price
$10.52
-
Product Attributes:
- #5 ORB Thread
- 5/16" Hose Barb
- 90 Elbow
- Hose Barb
- Hydraulic Adapters
- Male Rigid
- Steel
The 4601-05-05-NWO-FG from Brennan Industries is a steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 90° Elbow |
| Side 1 Connection | 5/16" Beaded Hose Barb |
| Side 1 Thread Size | 5/16" |
| Side 1 Standard | — |
| Side 2 Connection | Male ORB |
| Side 2 Thread Size | 1/2-20 |
| Side 2 Standard | SAE J1926 / ISO 11926 |
