    Steel, SAE J514 Flared Tube Female Bulkhead, 2" Female NPTF x 2" Male JIC

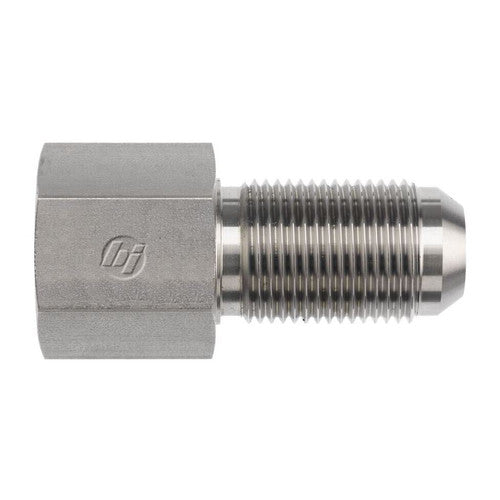

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

    Steel, SAE J514 Flared Tube Female Bulkhead, 2" Female NPTF x 2" Male JIC

    SKU 2705-32-32
    $164.87 - $164.87
    $164.87
    $164.87 - $164.87
    $164.87
      Product Attributes:
    • #32 JIC Thread
    • 2" NPTF Thread
    • Female Rigid
    • Hydraulic Adapters
    • Male Rigid
    • Steel
    • Straight

    The 2705-32-32 from Brennan Industries is a steel bulkhead fitting — a bulkhead fitting designed to pass a hydraulic line through a panel or wall. Built for use in hydraulic, fluid power, and pneumatic systems.

    Material Steel
    Plating Trivalent Chrome (CR3)
    Shape Straight
    Side 1 Connection Female NPTF
    Side 1 Thread Size 2-11.5 NPT
    Side 1 Standard SAE J476 / ANSI B1.20.3
    Side 2 Connection Male JIC 37° Flare
    Side 2 Thread Size 2-1/2-12 UN
    Side 2 Standard SAE J514 (Class 2A Thread)
