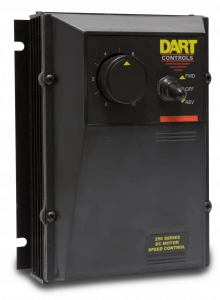

Product Image
Product photo may not represent actual item. Please see product details for more information.
253G-200E-4X NEMA 4 DC Speed Control
-
Product Attributes:
- 1/4 to 2 HP
- 1/8 to 1 HP
- 120 VAC Input
- 180 VDC Output
- 240 VAC Input
- 90 VDC Output
- DC Speed Control
- Motor Controls
- NEMA 4 Enclosure
- None
The 250 Series offers superb flexibility, reliability, and value. A general purpose, economical control rated to 2 horsepower, it provides the ultimate in standard features and versatility including: dual voltage (120/240VAC), adjustable H.P. settings, packaged power bridge, barrier terminal strip, fully rated-no auxiliary heatsink required, and chassis or NEMA 4/12 enclosure. Many options further extend the 250’s capabilities. A logical, easily accessible layout simplifies installation and adjustment. Clean design, quality components and careful assembly are trademarks of Dart Controls.
- Dual voltage - 120/240 VAC, 50/60Hz
- Adjustable horsepower settings
- Barrier terminal strip
- Packaged bridge supply (fullwave)
- 1% speed regulation; ±1/2% with tach feedback
- Adjustable Minimum speed
- Adjustable Maximum speed
- Adjustable IR Compensation
- Adjustable Linear Acceleration
- Adjustable Current Limit
- Line voltage compensation
- 5K ohm speed pot, knob and dial included
- Power on/off switch (enclosed models)
- 50:1 speed range
- Overload capacity: 150% for one minute
- Transient voltage protection
- Inhibit circuit
- Enclosed models rated NEMA 4/12
| MODEL NUMBER | STYLE | INPUT (VAC) | OUTPUT (VDC) | HP RANGE |
|---|---|---|---|---|
|
253G-200E
|
ENCLOSED |
120/240
|
0-90/180
|
1/8-1 (90V) 1/4-2 (180)
|
-4X: NEMA 4X wash down rated - enclosed models only
