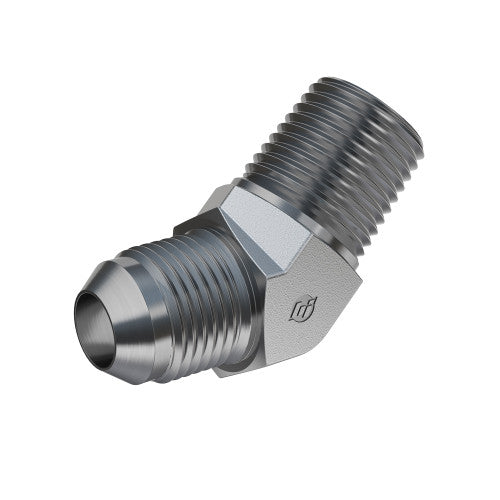

    Steel, SAE J514 37° Flare 45° Male Elbow, 5/8" Male JIC x 1/4" Male NPTF 30°

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

    Steel, SAE J514 37° Flare 45° Male Elbow, 5/8" Male JIC x 1/4" Male NPTF 30°

    SKU 2503-10-04-FG
    $5.48 - $5.48
    $5.48
    $5.48 - $5.48
    $5.48
      Product Attributes:
    • #10 JIC Thread
    • 1/4" NPTF Thread
    • 45 Elbow
    • Hydraulic Adapters
    • Male Rigid
    • Steel

    The 2503-10-04-FG from Brennan Industries is a steel 45° elbow — a 45° elbow fitting that changes hydraulic line direction. Built for use in hydraulic, fluid power, and pneumatic systems.

    Material Steel
    Plating Trivalent Chrome (CR3)
    Shape 45° Elbow
    Side 1 Connection Male JIC 37° Flare
    Side 1 Thread Size 7/8-14 UNF
    Side 1 Standard SAE J514 (Class 2A Thread)
    Side 2 Connection Male NPTF
    Side 2 Thread Size 1/4-18 NPT
    Side 2 Standard SAE J476 / ANSI B1.20.3
