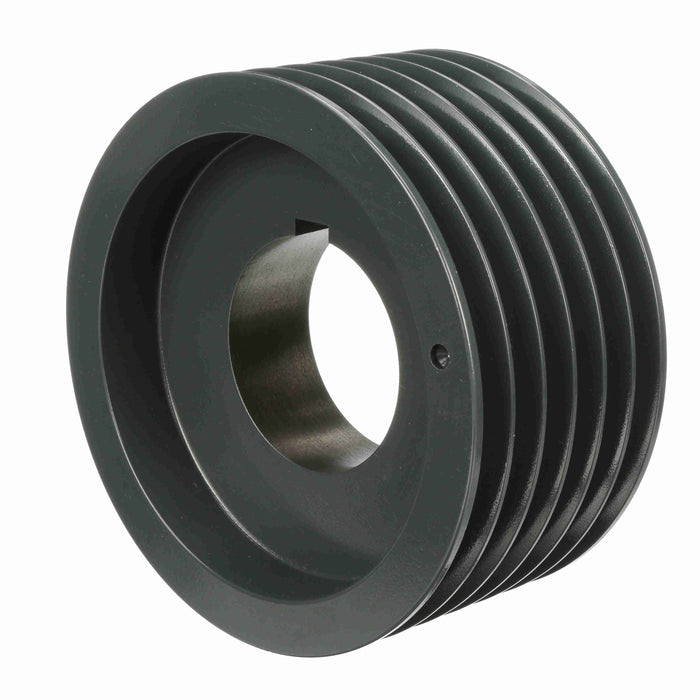

6B5V90 6 Groove Cast Iron Bushed Bore Multiple Sheave (Pack of 5)
SKU 1969468
Original price
$3,746.75
-
Original price
$3,746.75
Original price
$3,746.75
$3,746.75
-
$3,746.75
Current price
$3,746.75
-
Product Attributes:
- 5V Section
- 6 Groove
- 9.35" OD
- A Section
- Accepts R1 Bushing
- B Section
- Pulleys
- Split Taper Bore
- V-Belt Pulleys
Features
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
