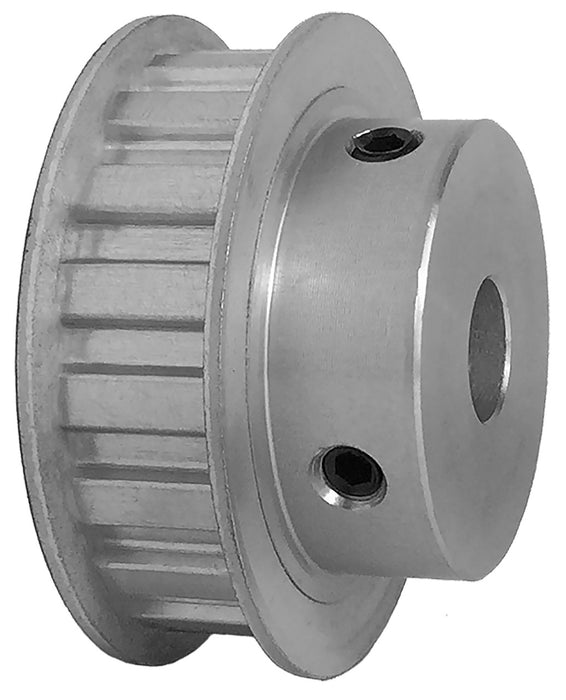

    18L050-6FA6 Timing Pulley

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

    18L050-6FA6 Timing Pulley

    SKU 18L050-6FA6
    by B&B Manufacturing
    $20.65 - $20.65
    $20.65
    $20.65 - $20.65
    $20.65
      Product Attributes:
    • 1/2" Bore
    • 1/2" Wide
    • 18 Teeth
    • Finished Bore
    • L (0.375") Pitch
    • Pulleys
    • Synchronous & Timing Belt Pulleys
    • Timing Belt Pulley

    Specifications:

    Product Number 18L050-6FA6
    Packaged Height 3.20 in
    Packaged Width 3.10 in
    Packaged Depth 3.20 in
    Weight 0.35 lbs
    Website Brand Powerhouse Timing
    Material Aluminum
    Finish Clear Anodized
    Flange Material Aluminum
    Type 6F
    Tooth Style L
    Tooth Count 18
    Pitch Diameter (in) 2.1486 in
    Pitch Diameter (mm) 54.6 mm
    Outside Diameter (in) 2.1186 in
    Outside Diameter (mm) 53.8 mm
    Flange Diameter (in) 2.375 in
    For Belt Width (in) 0.5 in
    Pulley Belt Width (in) 0.56 in
    Webbed No
    Hub Configuration Standard Hub
    Hub Diameter (in) 1.625 in
    Bore Type Finished Bore
    Bore (in) 0.5 in
    Keyway Description 2 x 1/4-20 @ 90°
    Set Screw Quantity 2
    Set Screw Size 1/4-20
    Country of Origin India



    Part Number Cross Reference:M18L050, 18L050 X 1/2 6FA, 18L050 X 1/2 6FA, 1304N11, 18L050-6FA6, 86437704, PT018J16L08T, 18L050-6FA6, A 6A 4-18DF05016, A6A4-18DF05016, 18L050-1A X 1/2, G605355700
