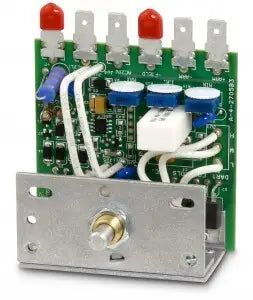

    Steel chassis mount electronic DC speed controller. Exposed chips, wires, battery and more on green control board, 6 terminal pins extending from top and speed potentiometer extending from bottom.

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

    15DV2A-104 FHP DC Speed Control

    SKU 15DV2A-104
    $181.74 - $181.74
    $181.74
    $181.74 - $181.74
    $181.74
      Product Attributes:
    • 1/25 to 1/3 HP
    • 1/50 to 1/6 HP
    • 120 VAC Input
    • 180 VDC Output
    • 240 VAC Input
    • 90 VDC Output
    • DC Speed Control
    • Motor Controls
    • On/Off Switch on Speed Pot
    • Open Chassis

    A general purpose, economical variable speed control for small DC and universal motor applications featuring: dual input voltages of 12/24 VAC or 120/240 VAC with DC output current rating of 2 Amps, adjustable trimpot settings, and quick connect terminal pins. The 15 Series is available in two compact panel mount styles, a NEMA 1 (15DVP) and NEMA 4/12 (15DVE) enclosed model.

    • Dual voltage models of 12/24 VAC or 120/240 VAC input
    • Full wave bridge power supply > Adjustable Minimum speed
    • Adjustable Minimum speed
    • Adjustable Maximum speed
    • Adjustable IR Compensation
    • Fixed Acceleration
    • 5K ohm speed pot, knob & dial included
    • 25:1 speed range
    • 1% speed regulation
    • Overload capacity of 200% for 1 minute
    • Transient voltage protection
    • AC line fuse (Enclosed)
    • Power on/off switch and light (Enclosed)
    MODEL NUMBER STYLE INPUT (VAC) OUTPUT (VDC) OUTPUT AMPS DC
    15DV2A
    CHASSIS
    120/240
    0-90/180
    2

    -104: “1A” chassis models only - FOR 120VAC SUPPLY applications only - On/Off switch ganged to back of speed pot
