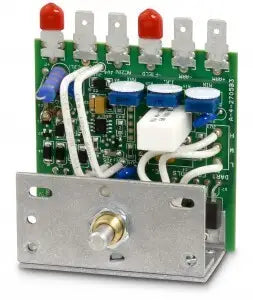

    Steel chassis mount electronic DC speed controller. Exposed chips, wires, battery and more on green control board, 6 terminal pins extending from top and speed potentiometer extending from bottom.

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

    13DV1A FHP DC Speed Control

    SKU 13DV1A
    $150.38 - $150.38
    $150.38
    $150.38 - $150.38
    $150.38
      Product Attributes:
    • 11 VDC Output
    • 12 VAC Input
    • 22 VDC Output
    • 24 VAC Input
    • <1/20 HP
    • DC Speed Control
    • Motor Controls
    • None
    • Open Chassis

    A general purpose, economical variable speed control for small DC and universal motor applications featuring: dual input voltages of 12/24 VAC or 120/240 VAC with DC output current rating of 2 Amps, adjustable trimpot settings, and quick connect terminal pins. The 15 Series is available in two compact panel mount styles, a NEMA 1 (15DVP) and NEMA 4/12 (15DVE) enclosed model.

    • Dual voltage models of 12/24 VAC or 120/240 VAC input
    • Full wave bridge power supply > Adjustable Minimum speed
    • Adjustable Minimum speed
    • Adjustable Maximum speed
    • Adjustable IR Compensation
    • Fixed Acceleration
    • 5K ohm speed pot, knob & dial included
    • 25:1 speed range
    • 1% speed regulation
    • Overload capacity of 200% for 1 minute
    • Transient voltage protection
    • AC line fuse (Enclosed)
    • Power on/off switch and light (Enclosed)
    MODEL NUMBER STYLE INPUT (VAC) OUTPUT (VDC) OUTPUT AMPS DC
    13DV1A
    CHASSIS
    12/24
    0-11/22
    2
