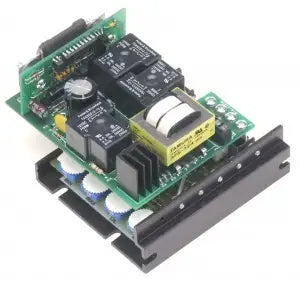

130HC12 Reversing DC Speed Control
-
Product Attributes:
- 1/15 to 1/8 HP
- 120 VAC Input
- 90 VDC Output
- DC Speed Control
- Motor Controls
- None
- Open Chassis
The 130 Series reversing control from Dart Controls utilizes Dart’s unique zero-speed detect and solid state dynamic braking circuits. These circuits eliminate the contact arcing and failed braking problems associated with other reversing and dynamic braking controls. Dart’s zero-speed detect circuit also eliminates motor plug reversing problems. In the event of a power loss or emergency stop condition, the 130 Series control will drop into a dynamic brake condition to safely and quickly bring the motor to a stop and remain there until power is reapplied and a run condition is recognized. The 130 Series control comes in a compact package and fits the industry standard footprint for both vertical and horizontal mounting.
- Adjustable horsepower settings
- Barrier terminal blocks
- Full wave bridge supply
- Adjustable Min speed
- Adjustable Max speed
- Adjustable IR compensation
- Adjustable current limit
- Fixed accel (0.5 sec)
- Line voltage compensation
- 5K speed pot, dial and knob included
- 50:1 speed range
- Overload capacity: 200% for 1 min
- Transient voltage protection
- Onboard dynamic brake resistor
- Automatic DB on power loss
- 1% speed regulation
| MODEL NUMBER | CYCLE RATE | INPUT (VAC) | OUTPUT (VDC) | HP RANGE |
|---|---|---|---|---|
|
130HC12
|
High / 30 per min
|
120
|
90
|
1/15 to 1/8
|
