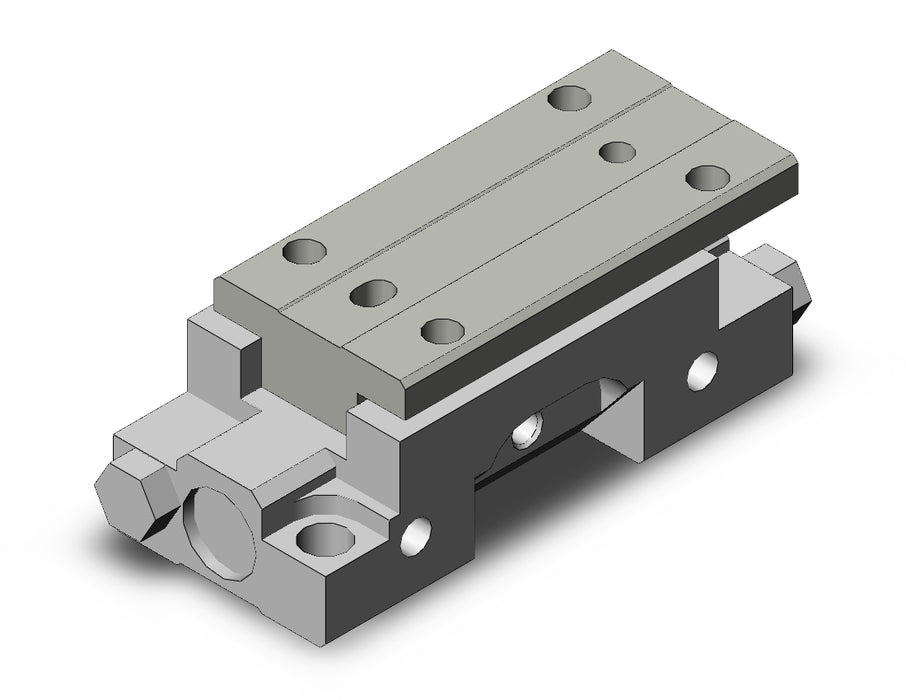

11-MXPJ6-5 CYL, SLIDE TABLE, CLEAN ROOM
SKU 11-MXPJ6-5
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$155.95
$155.95
-
$155.95
Current price
$155.95
Create a business account for discounted pricing and enhanced features!
The MXPJ6 is ideal for clean room applications and those that require high precision movement in short travel situations. The precision slide table has a machined guide with very tight tolerances that operates in conjunction with highly accurate recirculating ball bearings. This slide is capable of achieving parallelism within 0.02mm and non-rotation accuracy as low as 0.03 degrees. Two of the mounting surfaces allow work to be held to a tolerance +/-0.05mm plus the tolerance of the work piece. The slide contains two pistons that operate independently to supply the movement of the actuator.
