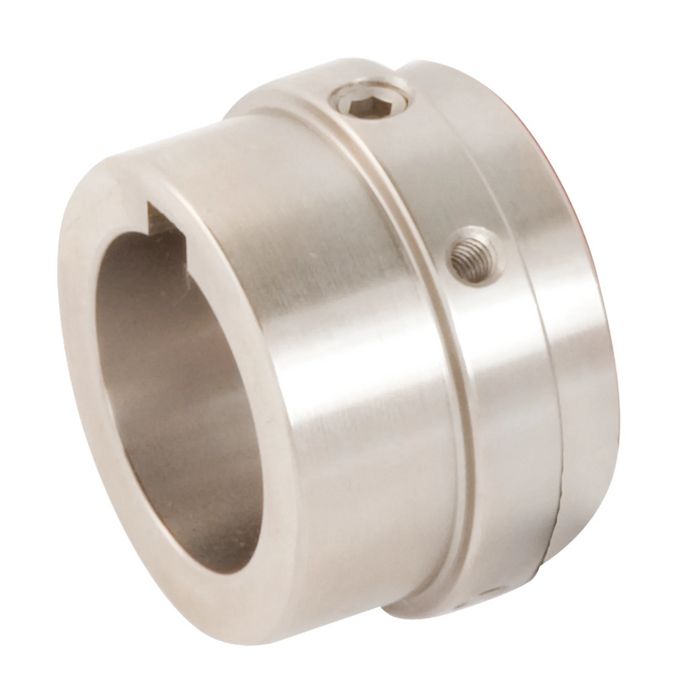

Product Image
Product photo may not represent actual item. Please see product details for more information.
60 HCB 2.9375" BORE 3/4" x 3/8" KW 2 SS
SKU 10680197
Original price
$950.96
-
Original price
$950.96
Original price
$950.96
$950.96
-
$950.96
Current price
$950.96
-
Product Attributes:
- 2 15/16" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 15
- Steel
The Rexnord Omega 60 HCB 2.9375" BORE 3/4" x 3/8" KW 2 SS is a finished bore close-coupled hub (HCB) designed for compact drive arrangements. Pre-bored and keyseated to the specified dimensions, this hub is ready to install and offers the same reversible, interchangeable design as all Omega hubs. Ideal where limited DBSE is required.
| Specification | Value |
|---|---|
| Coupling Size | 60 |
| Hub Type | HCB – Close-Coupled Bore Hub |
| Bore Dimension | 2.9375" BORE |
| Keyway | 3/4" x 3/8" KW |
| Bore System | Inch |
| Part Number (SKU) | 10680197 |
| Material | Carbon Steel |
| Continuous Torque Rating | 12,500 lb-in |
| Maximum RPM | 3800 |
| Hub Configuration | Reversible (Inboard/Outboard) |
| Compatible Elements | E (Close-Coupled) |
| Country of Origin | United States |
