    1 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

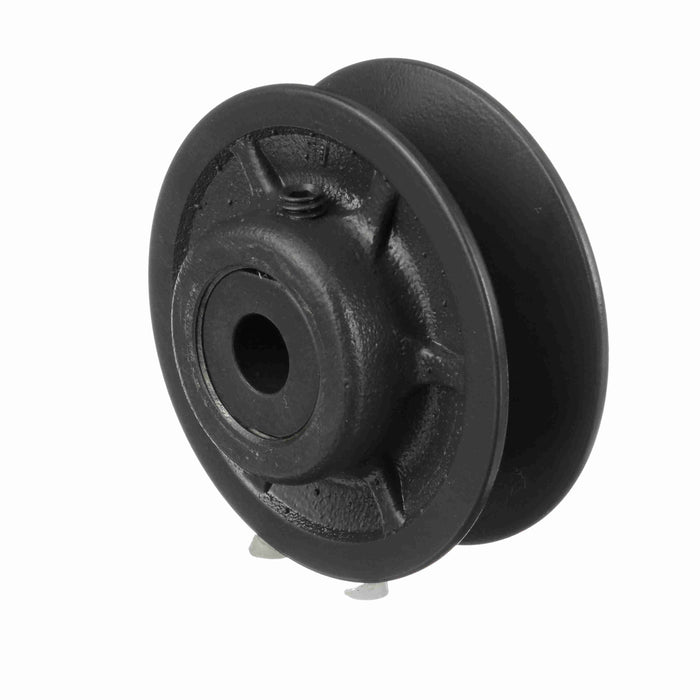

    1VP34X1/2 1 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave

    SKU 1045269
    $47.13 - $47.13
    $47.13
    $47.13 - $47.13
    $47.13
      Product Attributes:
    • 1 Groove
    • 1/2" Bore
    • 3.15" OD
    • 3L Section
    • 4L Section
    • 5L Section
    • A Section
    • B Section
    • Finished Bore
    • Pulleys
    • V-Belt Pulleys
    • Variable Pitch Pulleys

    Features

    • Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower.
    • VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
    • The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
    • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
    • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
