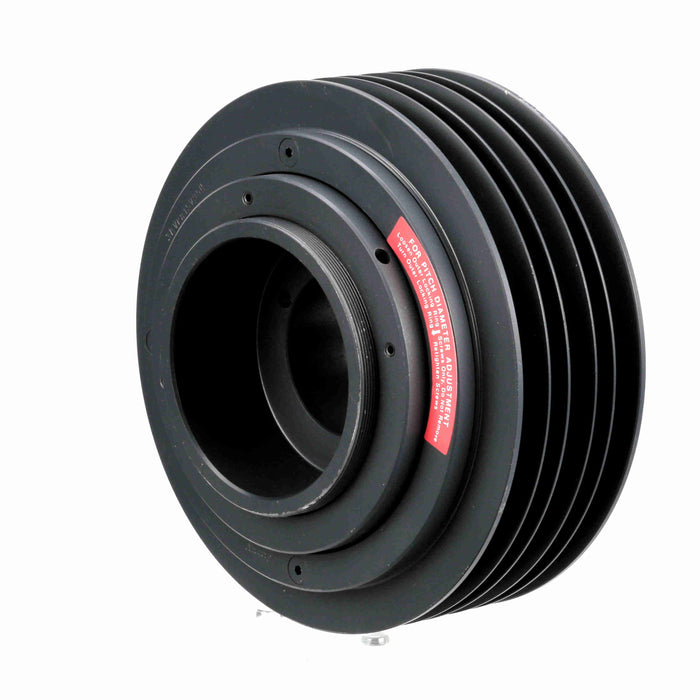

3MVP815V95Q 3 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave
SKU 1019306
Original price
$2,281.65
-
Original price
$2,281.65
Original price
$2,281.65
$2,281.65
-
$2,281.65
Current price
$2,281.65
-
Product Attributes:
- 3 Groove
- 5/8" Top Width
- 5V Section
- 9.60" OD
- Accepts Q1 Bushing
- Pulleys
- Split Taper Bore
- V-Belt Pulleys
- Variable Pitch Pulleys
Features
- Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
