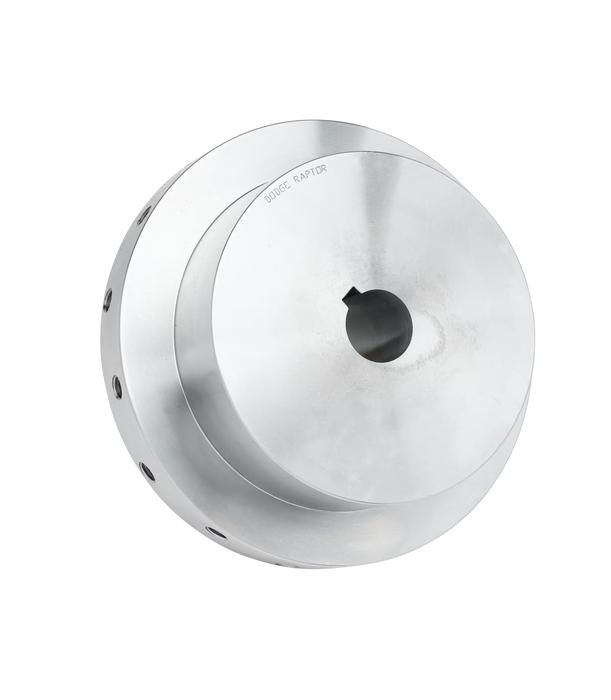

Product Image
Product photo may not represent actual item. Please see product details for more information.
RAPTOR 30HCBM 1"
-
Product Attributes:
- 1" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 30
- Steel
This Dodge Raptor size 30 finished bore shaft hub is bored to 1 in. with a Class 1 clearance fit per AGMA 9002. Two set screws at a 65° angle optimize radial and torsional holding power, delivering up to 75% more holding power than single set screw designs, and the reversible steel hub fits both close-coupled and spacer Raptor couplings. This hub is tapped for metric hardware; use with Raptor metric (M) element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 015390 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Finished Bore |
| Coupling Size | E30 |
| Bore | 1 in. |
| Bore Fit | Class 1 clearance fit (AGMA 9002) |
| Hardware Type | Metric (hub tapped for metric hardware) |
| Max Rated Torque | 3,651 in-lb |
| Max Speed | 5,800 RPM |
| Hub Length Thru Bore (B) | 2.31 in. |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
