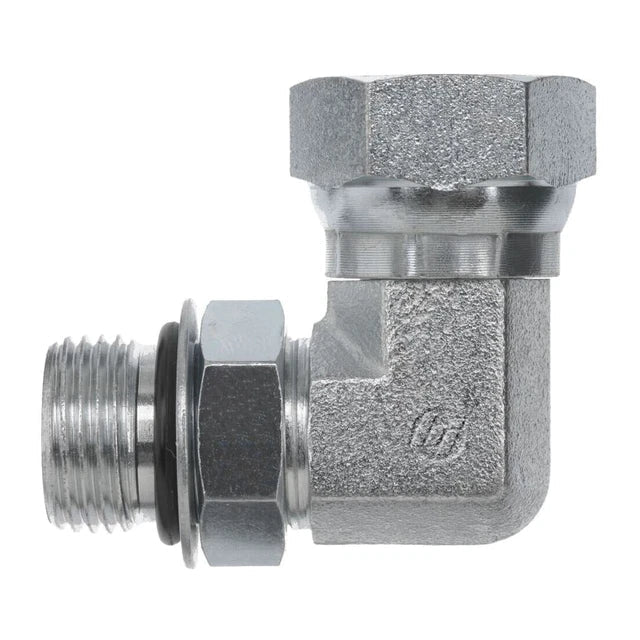

Stainless Steel, SAE J514 NPSM Swivel 90° Adjustable Port Elbow, 1-5/8-12 Male Adjustable ORB x 1-1/4" Female NPSM Swivel
SKU 6901-20-20-NWO-SS
Original price
$ 5,489.00
-
Original price
$ 5,489.00
Original price
$ 5,489.00
$ 5,489.00
-
$ 5,489.00
Current price
$ 5,489.00
-
Product Attributes:
- #20 ORB Thread
- 1-1/4" NPSM Thread
- 90 Elbow
- Female Swivel
- Hydraulic Adapters
- Male Rigid
- Stainless Steel
The 6901-20-20-NWO-SS from Brennan Industries is a stainless steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Stainless Steel |
| Plating | None (Passivated) |
| Shape | 90° Elbow |
| Side 1 Connection | Male ORB |
| Side 1 Thread Size | 1-5/8-12 |
| Side 1 Standard | SAE J1926 / ISO 11926 |
| Side 2 Connection | Female NPSM Swivel |
| Side 2 Thread Size | 1-1/4-11.5 NPT |
| Side 2 Standard | ANSI/ASME B1.20.1 |
