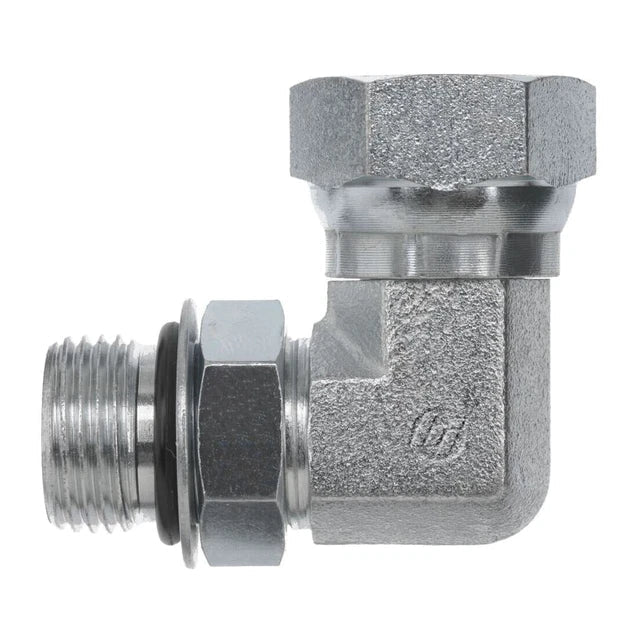

Steel, SAE J514 NPSM Swivel 90° Adjustable Port Elbow, 3/4-16 Male Adjustable ORB x 3/8" Female NPSM Swivel
SKU 6901-08-06-NWO-FG
Original price
$ 152.00
-
Original price
$ 152.00
Original price
$ 152.00
$ 152.00
-
$ 152.00
Current price
$ 152.00
-
Product Attributes:
- #8 ORB Thread
- 3/8" NPSM Thread
- 90 Elbow
- Female Swivel
- Hydraulic Adapters
- Male Rigid
- Steel
The 6901-08-06-NWO-FG from Brennan Industries is a steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 90° Elbow |
| Side 1 Connection | Male ORB |
| Side 1 Thread Size | 3/4-16 |
| Side 1 Standard | SAE J1926 / ISO 11926 |
| Side 2 Connection | Female NPSM Swivel |
| Side 2 Thread Size | 3/8-18 NPT |
| Side 2 Standard | ANSI/ASME B1.20.1 |
