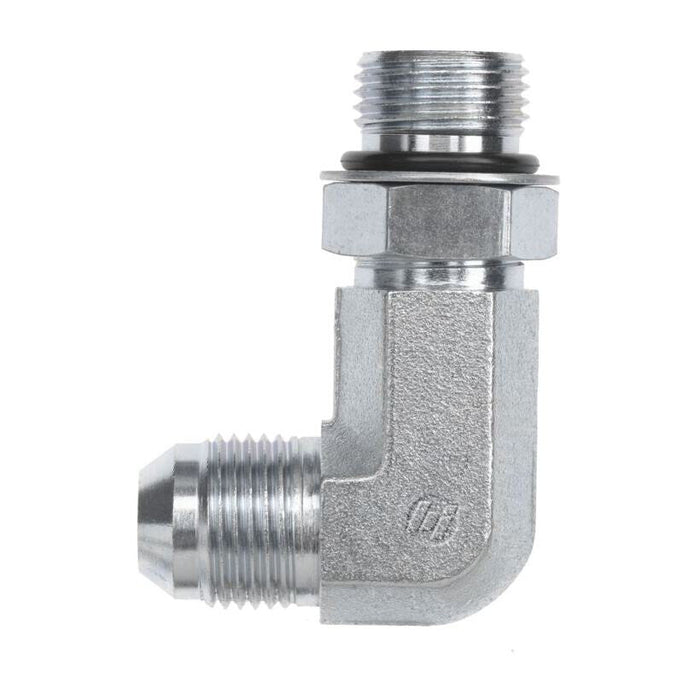

Product Image
Product photo may not represent actual item. Please see product details for more information.
Steel, SAE J514 37° Flare 90° Long Adjustable Port Elbow, 1/2" Male JIC x 7/8-14 Male Adjustable ORB
SKU 6801-L-08-10-NWO-FG
Original price
$ 231.00
-
Original price
$ 231.00
Original price
$ 231.00
$ 231.00
-
$ 231.00
Current price
$ 231.00
-
Product Attributes:
- #10 ORB Thread
- #8 JIC Thread
- 90 Long Elbow
- Hydraulic Adapters
- Male Rigid
- Steel
The 6801-L-08-10-NWO-FG from Brennan Industries is a steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 90° Elbow |
| Side 1 Connection | Male JIC 37° Flare |
| Side 1 Thread Size | 3/4-16 UNF |
| Side 1 Standard | SAE J514 (Class 2A Thread) |
| Side 2 Connection | Male ORB |
| Side 2 Thread Size | 7/8-14 |
| Side 2 Standard | SAE J1926 / ISO 11926 |
