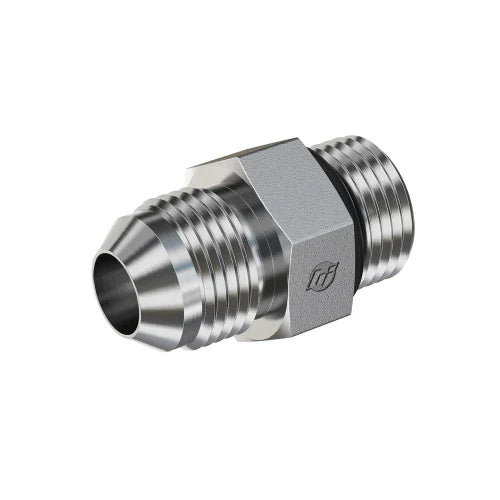

Steel, SAE J514 37° Flare Port Connector, 1/8" Male JIC x 5/16-24 Male ORB
SKU 6400-02-02-O
Original price
$ 63.00
-
Original price
$ 63.00
Original price
$ 63.00
$ 63.00
-
$ 63.00
Current price
$ 63.00
-
Product Attributes:
- #2 JIC Thread
- #2 ORB Thread
- Hydraulic Adapters
- Male Rigid
- Steel
- Straight
The 6400-02-02-O from Brennan Industries is a steel hydraulic fitting — a hydraulic tube fitting and adapter for fluid power applications. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | Straight |
| Side 1 Connection | Male JIC 37° Flare |
| Side 1 Thread Size | 5/16-24 UNF |
| Side 1 Standard | SAE J514 (Class 2A Thread) |
| Side 2 Connection | Male ORB |
| Side 2 Thread Size | 5/16-24 |
| Side 2 Standard | SAE J1926 / ISO 11926 |
