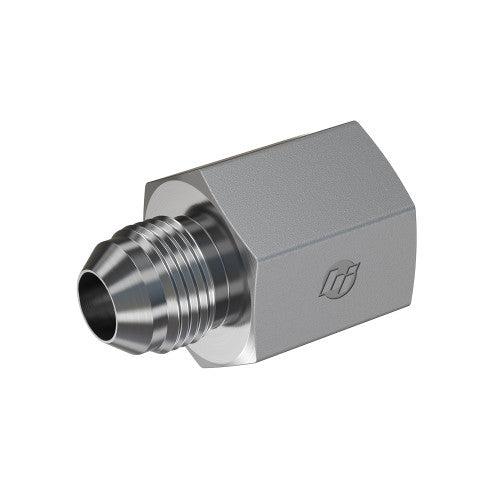

    Brass, SAE J514 37° Flare Female Connector, 3/4" Male JIC x 1/2" Female NPTF

    Product Image

    Product photo may not represent actual item. Please see product details for more information.

    Brass, SAE J514 37° Flare Female Connector, 3/4" Male JIC x 1/2" Female NPTF

    SKU 2405-12-08-B
    $ 729.00 - $ 729.00
    $ 729.00
    $ 729.00 - $ 729.00
    $ 729.00
      Product Attributes:
    • #12 JIC Thread
    • 1/2" NPTF Thread
    • Brass
    • Female Rigid
    • Hydraulic Adapters
    • Male Rigid
    • Straight

    The 2405-12-08-B from Brennan Industries is a brass female connector — a straight female connector that joins a tube to a threaded port. Built for use in hydraulic, fluid power, and pneumatic systems.

    Material Brass
    Plating None
    Shape Straight
    Side 1 Connection Male JIC 37° Flare
    Side 1 Thread Size 1-1/16-12 UN
    Side 1 Standard SAE J514 (Class 2A Thread)
    Side 2 Connection Female NPTF
    Side 2 Thread Size 1/2-14 NPT
    Side 2 Standard SAE J476 / ANSI B1.20.3
