Product Image
Product photo may not represent actual item. Please see product details for more information.

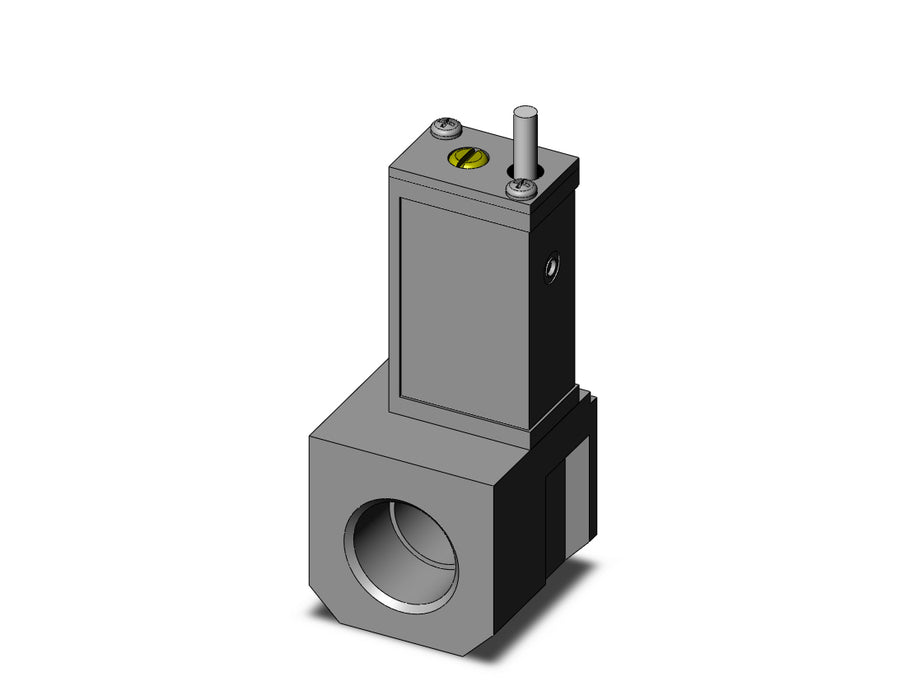

IS10E-3003-6-A PRESS SWITCH W/ PIPING ADAPTER
SKU IS10E-3003-6-A
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$87.00
$87.00
-
$87.00
Current price
$87.00
Create a business account for discounted pricing and enhanced features!
ISE10E is a pressure switch with a linear mechanical set point indicator, for modular installation with SMC's FRL units. The switch housing attaches to a threaded block for mounting inline with the FRL. The housing assembly includes a reed switch activated by a piston-mounted magnet. A screw adjusts the spring loading the piston to the switch point. Two pressure ranges are available, along with MPa and psi units on the setting scale. The adapter block has 5 port sizes, in Rc, NPT or G thread to mount to 3 FRL body sizes. IS10E is CE and RoHS compliant, with an IP40 enclosure rating.
