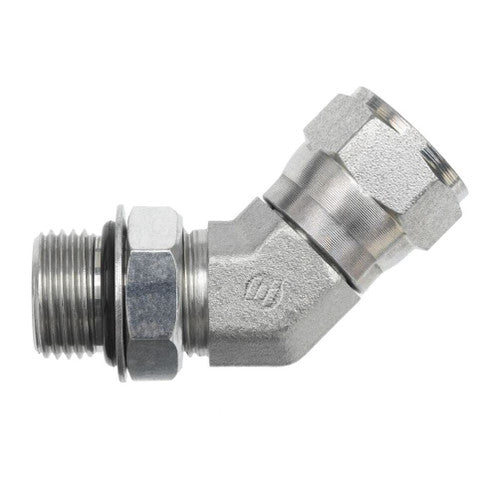

Steel, SAE J514 37° Flare Swivel 45° Adjustable Port Elbow, 2-1/2-12 Male Adjustable ORB x 2" Female JIC Swivel
SKU 6810-32-32-NWO-FG
Original price
$342.00
-
Original price
$342.00
Original price
$342.00
$342.00
-
$342.00
Current price
$342.00
-
Product Attributes:
- #32 JIC Thread
- #32 ORB Thread
- 45 Elbow
- Female Swivel
- Hydraulic Adapters
- Male Rigid
- Steel
The 6810-32-32-NWO-FG from Brennan Industries is a steel 45° elbow — a 45° elbow fitting that changes hydraulic line direction. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 45° Elbow |
| Side 1 Connection | Male ORB |
| Side 1 Thread Size | 2-1/2-12 |
| Side 1 Standard | SAE J1926 / ISO 11926 |
| Side 2 Connection | Female JIC 37° Flare Swivel |
| Side 2 Thread Size | 2-1/2-12 UN |
| Side 2 Standard | SAE J514 (Class 2A Thread) |
