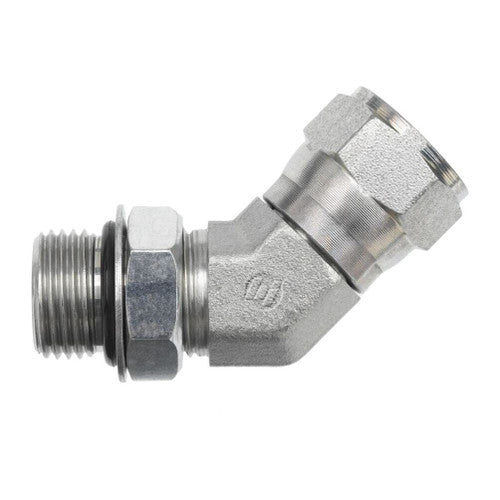

Stainless Steel, SAE J514 37° Flare Swivel 45° Adjustable Port Elbow, 1-5/16-12 Male Adjustable ORB x 1" Female JIC Swivel
SKU 6810-16-16-NWO-SS
Original price
$357.00
-
Original price
$357.00
Original price
$357.00
$357.00
-
$357.00
Current price
$357.00
-
Product Attributes:
- #16 JIC Thread
- #16 ORB Thread
- 45 Elbow
- Female Swivel
- Hydraulic Adapters
- Male Rigid
- Stainless Steel
The 6810-16-16-NWO-SS from Brennan Industries is a stainless steel 45° elbow — a 45° elbow fitting that changes hydraulic line direction. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Stainless Steel |
| Plating | None (Passivated) |
| Shape | 45° Elbow |
| Side 1 Connection | Male ORB |
| Side 1 Thread Size | 1-5/16-12 |
| Side 1 Standard | SAE J1926 / ISO 11926 |
| Side 2 Connection | Female JIC 37° Flare Swivel |
| Side 2 Thread Size | 1-5/16-12 UN |
| Side 2 Standard | SAE J514 (Class 2A Thread) |
